Picture of 6 Roller Pump - Delavan, 150 PSI, 19.6 GPM, CI, CCW

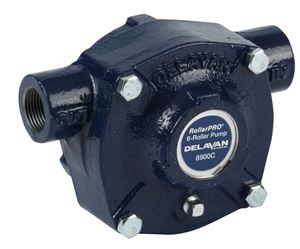

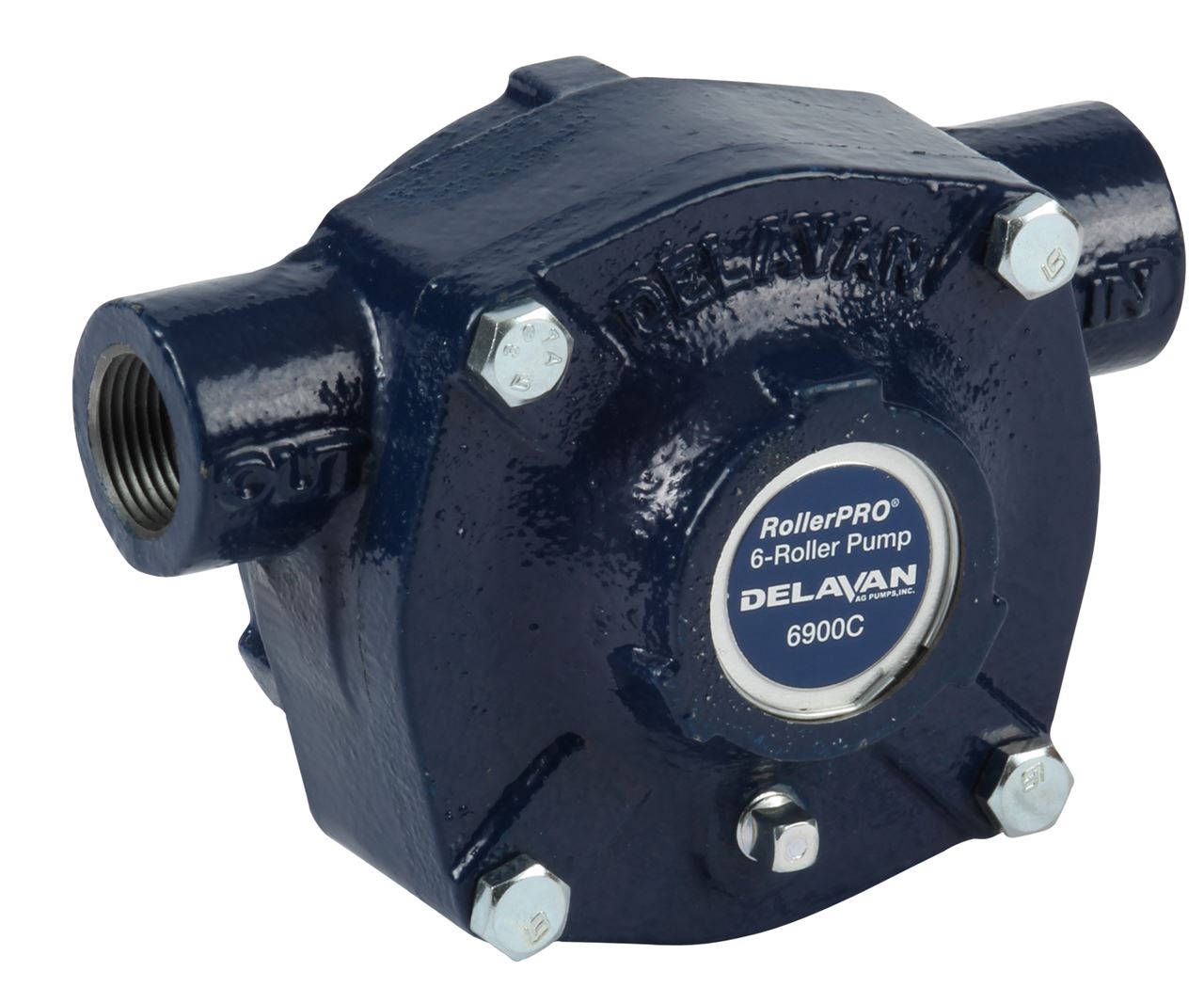

6 Roller Pump - Delavan, 150 PSI, 19.6 GPM, CI, CCW

SKU: 6900C

Brand: Delavan Fluid Power

$138.86

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Delavan RollerPRO® 6900C Series 6-roller cast iron pump. Field Serviceable - saving precious time and money when you need to replace the rollers


Features
• Complete roller replacements takes about 3 minutes
• To ensure the best performance for your investment, Delavan incorporates such features as “Ultra” rollers, heavy-duty sealed bearings, viton seal rings, stainless steel shafts and rotors, and close tolerance machining. All are standard


Specifications
• Type: 6-Roller design
• Max. Flow: 19.6 GPM
• Max Operating Speed: 1,000 RPM
• Max Pressure: 150 PSI
• Max Recommended Temperature: 140°F (60° C)
• Port Size: 3/4” NPT (female)
• Base Mounted: 5⁄16 -18 UNC-2B (2 holes)
• PTO: Use torque bar and chain
• Shaft Size: 5⁄8” solid shaft
• Rotation: CCW (standard)
• Housing: Cast Iron
• Rollers: 3⁄4” Ultra rollers (standard)
• Shaft Seals: Viton cartridge type lip seals
• Seal Ring: Viton
• Shaft & Rotor: Extra-fine finish 404 SST
• Bearings: Permanently-lubricated, heavy-duty sealed bearings
• Weight: 9 lbs
