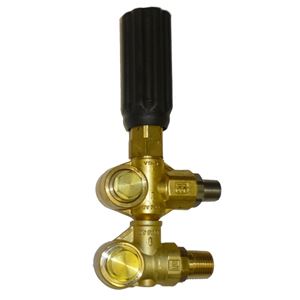

Picture of AR Gymatic VR35 3/B Unloader  XM, XR, RK & RR (No Injector) Inlet 1/2" M

AR Gymatic VR35 3/B Unloader XM, XR, RK & RR (No Injector) Inlet 1/2" M

SKU: AR21669

Brand: Annovi Reverberi - AR North America

$105.15

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Bolt-On Unloader Fits AR AR SXMA, SXMV, XM, XMA, XMV, RK, RKA, RKV, RR, RRA, RRV Pumps


Specifications:
• Maximum Pressure: 4,000 PSI
• Max. Volume: 5.0 GPM
• Adjustable pressure
• Brass body
• Built-In bypass channel
• Max. Fluid Temp.: 165 degrees F.
• Inlet Ports (1): 1/2" MPT
• Discharge Ports (1): 3/8” MPT
• Bypass Ports: Built-In
• 2.5 lbs. Weight

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
