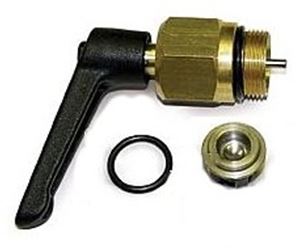

General Pump 100315 Jetter Valve, use with TT and TC Pumps (Replaces Valve Cap). Allows standard triplex pump to generate flow pulsations on demand to improve nozzle movement and cleaning power in sewer cleaning applications

Features:
• Simple operation allows both full-flow and pulsation modes
• Large easy-to-grasp handle allows gloved operation
• Designed and made in the USA.
• Easy installation - simply replace middle valve cap and valve on Pump

TPR HE 250 Data Sheet

Specifications:
• Work on these Pumps: TT & TC Series
• Maximum Pressure: 3,500 PSI
• Materials: Brass, Buna-N, Teflon, Stainless Steel
• Weight: 0.5 lb

Features
• Forward jet breaks up clogs & debris
• 3 Backward jets drive nozzle forward and flushes and removes debris from sides of line
• Corrosion resistant stainless steel construction

Specifications
• Inlet: 1/4” FPT
• Nozzle Size: # 4.5
• Material: Stainless steel
• Maximum Pressure: 4,200 PSI
• Max. Fluid Temperature: 300º F
• Weight: 0.6 oz.

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

Features:
• Suitable for cold and hot water commercial pressure cleaning applications
• Reinforcement: One layer of high tensile braided steel – R1 Rating
• Cover: Wrapped finish with embossed lay line in grey “mark-less” cover color
• Burst (Minimum): 3:1 working pressure
• Impulse Life: 200,000+

Specifications:
• Hose Inner Diameter: 3/8" ID
• Length: 4’
• Working (Maximum): Up to 4,000 PSI
• Burst (Minimum): 12,000 PSI
• Color: Grey, “mark-less”
• Maximum Temperature: 250° F.
• Ends: 3/8" MPT (1 solid & 1 swivel)
• Weight 1.25 lbs

3/8" Ball Valve Kit with GP Quick Disconnect Couplers 4,000 PSI. Use ball valve to control the flow of water

Ball Valve Specifications
• Zinc plated steel bod
• Chrome plated steel ball
• Max Temperature: +212°F
• Max Pressure: 7,250 PSI

Kit Includes:
• 3/8" FPT Valley Industries Ball valve
• 3/8" General Pump D11009 Zinc plated steel plug
• 3/8" General Pump D10004 Brass socket
• Max Pressure: 4, 000 PSI
• Weight 1.45 lbs.
