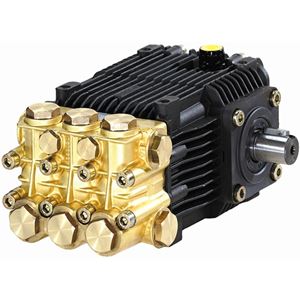

• Annovi Reverberi direct replacement for CAT 310 & 5CP2120W pumps
• Constructed of die-cast bodies and feature a forged brass head
• Internal components include special thick solid ceramic plungers for long life and durability
• Precision cast cooling fins are anodized for maximum heat dissipation
• Oversized tapered roller bearings and the precision supports assure proper shaft alignment and maximum life. Valve cages of special designed Ultra-Form provide positive seating and extended life
• One-piece connecting rods are either a special alloy aluminum or bronze oversized for strength and load disbursement
• Triplex Plunger Pump
• Solid Shaft for Belt or Gear Drive
• Max. Volume: 3.96 GPM
• Max. Discharge Pressure: 2,000 PSI
• Max. Pump Speed: 950 RPM
• Shaft Diameter: 24mm Solid
• Maximum Horsepower Requirements: 7.27 GHP
• Max. Fluid Temp.: 140 degrees F.
• Inlet Ports (2): 1/2" Female
• Discharge Ports (2): 3/8" Female
• Drive Side: Standard right (reversible)
• Weight: 21.0 lbs
• Order Rail Kit # U-BRACKET/CW below to retrofit CAT 310 & 5CP2120W pumps
