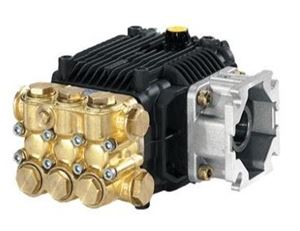

Picture of 2700PSI, 3.0GPM Annovi Reverberi Direct Drive Pump

2700PSI, 3.0GPM Annovi Reverberi Direct Drive Pump

SKU: XMV3G27D-F25

Brand: Annovi Reverberi - AR North America

$327.60

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Annovi Reverberi / AR North America XMV pump. XMV D Version with F25 flange series pumps are designed to direct drive on gasoline engines ranging from 5 - 7 HP. XMV plunger pumps are used for a wide variety of high pressure washing applications


Features:
• Constructed with die-cast bodies and feature a brass head
• Internal components include special thick solid ceramic plungers for long life and durability
• Precision cast cooling fins are anodized for maximum heat dissipation
• Oversized needle bearings on the drive side, and ball bearings on the non-drive side together with the precision supports assure positive alignment and centering in relation to the crankcase
• One-piece connecting rods are special alloy aluminum, oversized for strength and load disbursement


Specifications:
• Triplex Plunger Pump
• Direct Drive with Gas Flange 3-6.5 HP SAE
• Max. Volume: 3.0 GPM
• Max. Discharge Pressure: 2,700 PSI
• Max. Pump Speed: 3400 RPM
• Shaft Diameter: 3/4” Hollow
• Max. Horsepower Requirements: 7.3 GHP
• Max. Fluid Temp.: 160 degrees F.
• Inlet Ports (2): 1/2" BSP
• Discharge Ports (2): 3/8" BSP
• Drive Side: Standard right
• Forged brass head & valve covers
• Solid ceramic plungers
• Weight: 19.0 lb.
