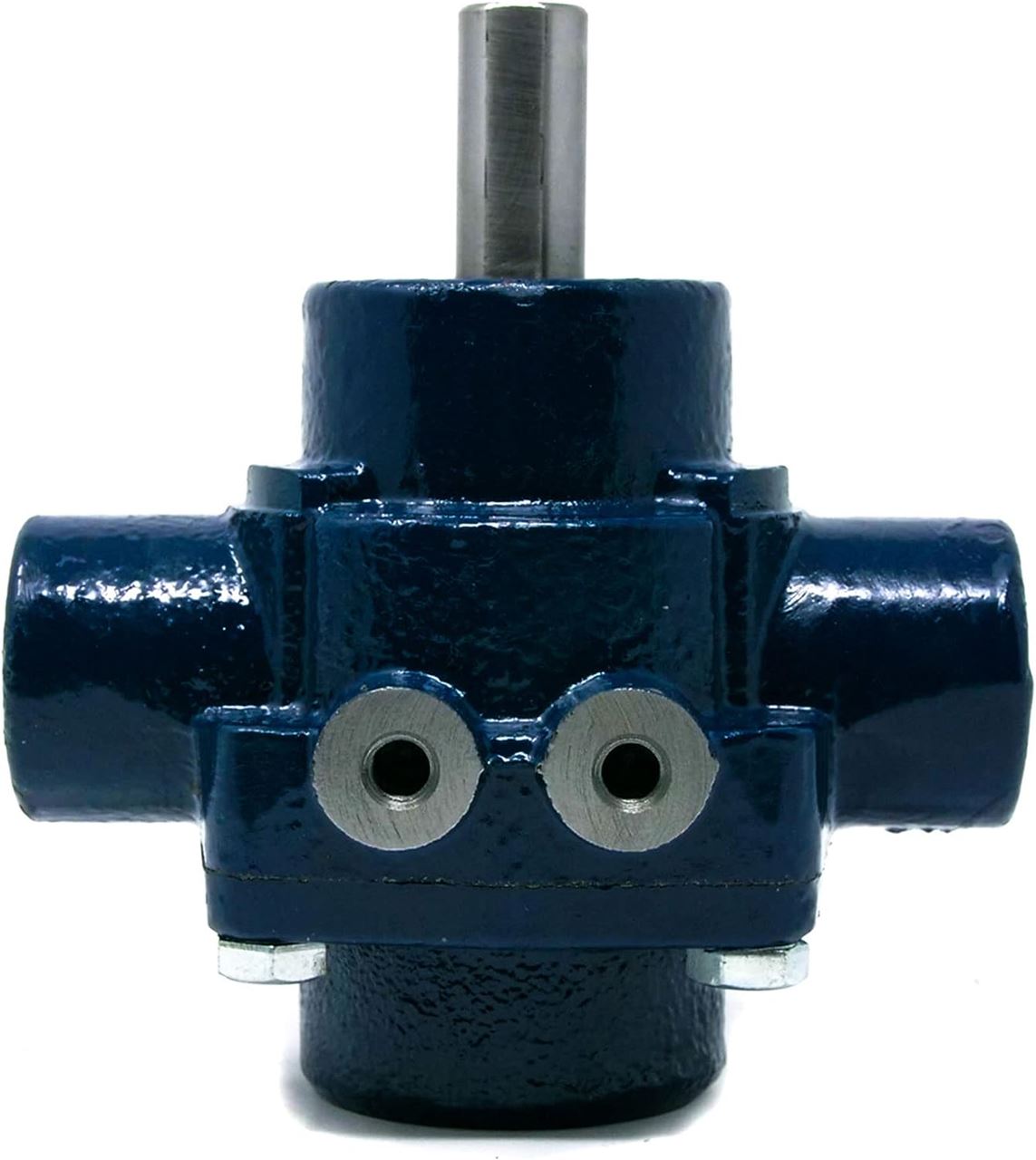

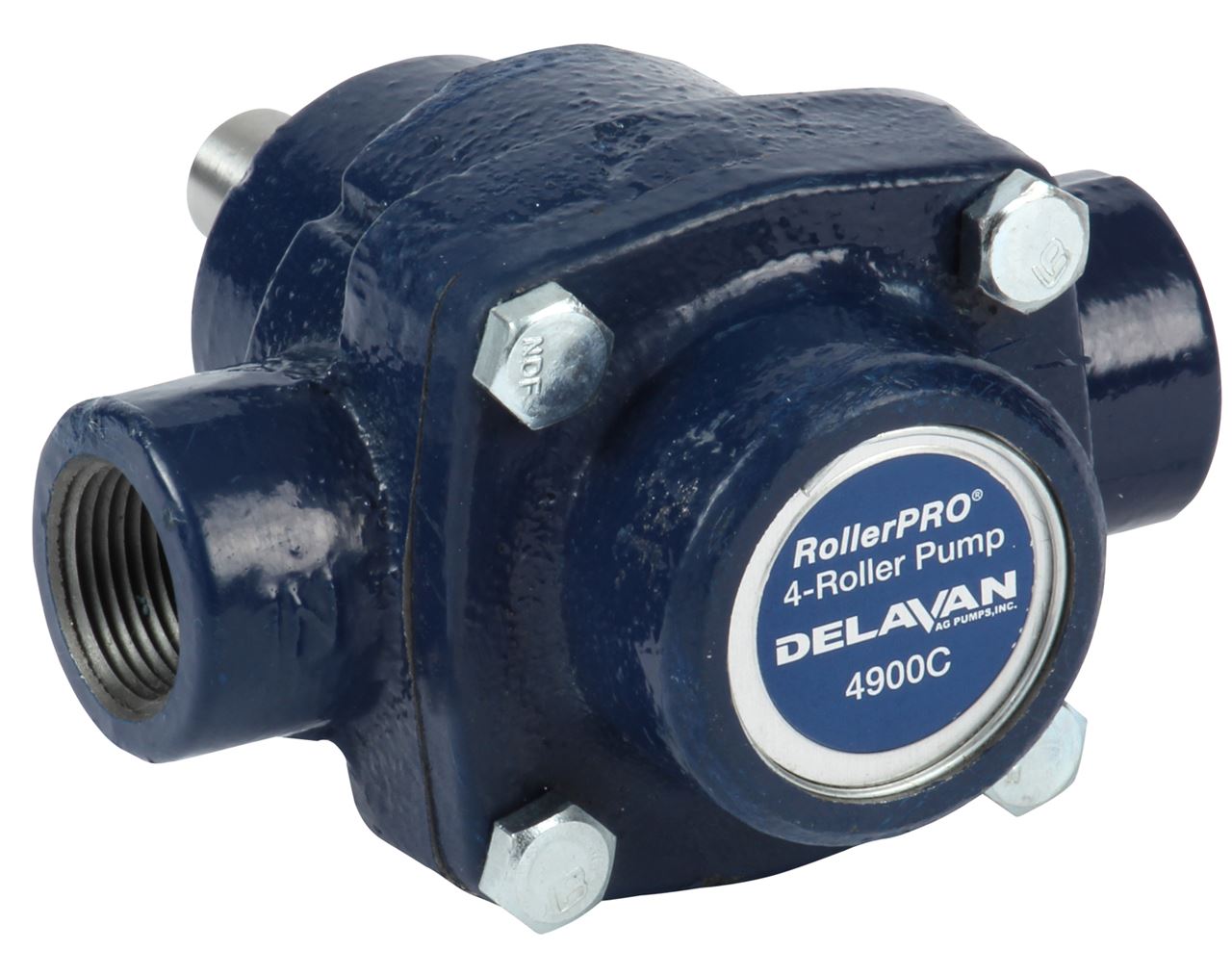

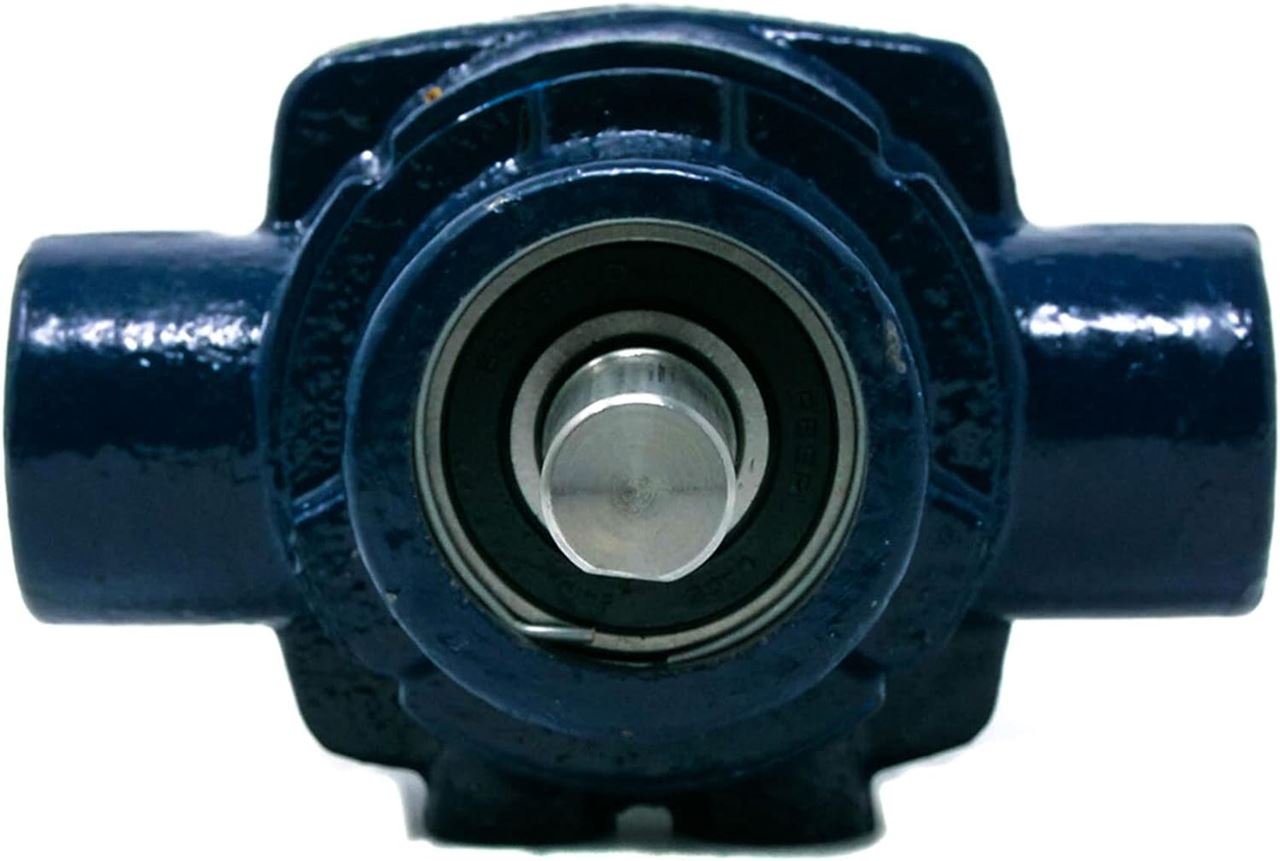

Delavan RollerPRO® 4900C Series 4-roller cast iron pump. Field Serviceable - saving precious time and money when you need to replace the rollers

Features
• Complete roller replacements takes about 3 minutes
• To ensure the best performance for your investment, Delavan incorporates such features as “Ultra” rollers, heavy-duty sealed bearings, viton seal rings, stainless steel shafts and rotors, and close tolerance machining. All are standard

Can all RollerPRO Pumps be directly connected to a PTO?
• The 4900 Series RollerPRO is the only pump that can not be directly connected to a tractor PTO shaft
• If you wish to use on a PTO, a gearbox is required to increase the speed to 1800 – 2600 RPM

Specifications
• Type: 4-Roller design
• Max. Flow: 9.2 GPM
• Max Operating Speed: 2,600 RPM
• Max Pressure: 100 PSI
• Max Recommended Temperature: 140°F (60° C)
• Port Size: 3/4” NPT (female)
• Base Mounted: 5⁄16 -18 UNC-2B (2 holes)
• PTO: Use torque bar and chain
• Shaft Size: 5⁄8” solid shaft
• Rotation: CW (standard)
• Housing: Cast Iron
• Rollers: 1/2” Ultra rollers (standard)
• Shaft Seals: Viton cartridge type lip seals
• Seal Ring: Viton
• Shaft & Rotor: Extra-fine finish 404 SST
• Bearings: Permanently-lubricated, heavy-duty sealed bearings
• Weight: 5 lbs
