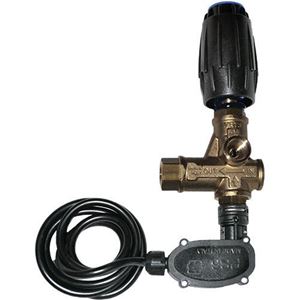

Picture of VRT3 Adjustable Unloader 4,500 PSI (Black) with Pressure Switch

VRT3 Adjustable Unloader 4,500 PSI (Black) with Pressure Switch

SKU: VRT3-310PS6

Brand: Mecline

$80.71

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Newly introduced Mecline VRT3 Unloader with Pressure Switch is an updated version of the Arrow Line VRT unloader with a stronger valve body with less porosity. Use for burner control or time delay switch.


New Design Features:
• Interior Design – more efficient flow and operation
• Dual Locking Nuts – vibration resistant for setting maximum pressures
• New Spring Material – more resistant to fatigue, powder paint resists rusting
• Piston – large diameter, more strength and contact area for shifting alignment
• Discharge Nipple – sealing o-ring has been moved to the lower part of the thread, increases hydro strength and fitting strength
• Shutter Valve – hex design, less contact area for smooth shifting (prevents binding). larger size, longer life and more positive shifting


Featuring:
• Integral switch detects full bypass mode
• Use for burner control or time delay switch
• Over sized handle – easier adjustment
• Forged valve body – excellent strength
• Two by-pass ports
• Ultra thick inlet and discharge ports - added strength
• Color coded springs and caps – easy valve identification
• All ports are FNPT


Specifications:
• Spring Color: Black
• Replaces AL687 & MV550MS
• Maximum Pressure: 4,500 PSI
• Max. Volume: 8.0 GPM
• Micro Switch 6 AMP, 250 V
• Adjustable pressure
• Brass valve body
• Max. Fluid Temp.: 194° F.
• Inlet Port (1): 3/8" FNPT
• Discharge Ports (1): 3/8” FNPT
• Bypass Ports (2): 3/8” FNPT
• Weight: 33.3 oz



 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.

Customers who bought this item also bought
Picture of GP 40º (White) x #6.0 QC Spray Nozzle

GP 40º (White) x #6.0 QC Spray Nozzle

SKU: 940060Q


General Pump 40° (White) #6.0 Quick Connect (Q) Spray Nozzle


Features
• 5,000 PSI operating pressure
• Made in the USA
• Ceramic insert is resistant to wear
• Through-hardened stainless steel orifices offer superior wear resistance compared to standard case hardened nozzles
• Stainless steel housing resists cracking and wear
• Resistant to most chemical
• Large color coded tip protector on Q-type nozzles permits rapid identification of fan angle
• Laser marked for clarity and durability


Specifications
• Tip Angle: 40° (White)
• Nozzle Size: 6.0
• Operating Pressure: 5,000 PSI
• Connection: 1/4” QC Plug
• Weight: 0.05 oz


Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

  Price: $3.33
Picture of QD Socket, SS 3/8 x 3/8 NPT-M 5,000 PSI

QD Socket, SS 3/8 x 3/8 NPT-M 5,000 PSI

SKU: D10075


General Pump D10075 Quick Disconnect Coupler Socket Stainless Steel 3/8” x 3/8" NPT-M 5,000 PSI


Features:
• Quick disconnect design
• 304 Stainless steel
• EPDM O-Ring


Specifications:
• Quick Disconnect Coupler: Socket
• Body Material: 304 Stainless steel
• Socket Size: 3/8"
• Thread: 3/8” NPT-M
• Max Temp: 175°
• Max Operating Pressure: 5,000 PSI
• Replaces QCS2MSS
• Weight: 0.21 lb



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"
  Price: $6.98
Picture of QD Socket, Brass 3/8 x 3/8 NPT-F 4,000 PSI

QD Socket, Brass 3/8 x 3/8 NPT-F 4,000 PSI

SKU: D10003


General Pump D10003 Quick Disconnect Coupler Socket Brass 3/8” x 3/8" NPT-F 4,000 PSI


Features:
• Quick disconnect design
• Brass
• EPDM O-Ring


Specifications:
• Quick Disconnect Coupler: Socket
• Body Material: Brass
• Socket Size: 3/8"
• Thread: 3/8” NPT-F
• Max Temp: 175°
• Max Operating Pressure: 4,000 PSI
• Replaces QCS2FB
• Weight: 0.20 lb



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"
  Price: $3.92
Picture of QD Plug, Hardened Steel Zinc Plated 3/8 x 3/8 NPT-F 4,000 PSI

QD Plug, Hardened Steel Zinc Plated 3/8 x 3/8 NPT-F 4,000 PSI

SKU: D11008


General Pump D11008 Quick Disconnect Coupler Plug Hardened Steel Zinc Plated 3/8” x 3/8" NPT-F 4,000 PSI


Features:
• Quick disconnect design
• Hardened Steel Zinc Plated


Specifications:
• Quick Disconnect Coupler: Plug
• Body Material: Hardened Steel
• Plug Size: 3/8"
• Thread: 3/8” NPT-F
• Max Temp: 175°
• Max Operating Pressure: 4,000 PSI
• Replaces QCP2FS
• Weight: 0.10 lb



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"
  Price: $1.07
