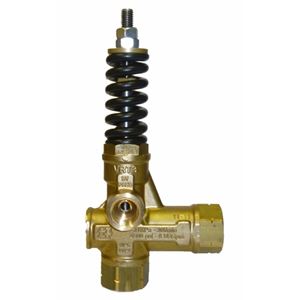

Picture of VRT3 Adjustable Unloader 4,500 PSI (Black) No Knob

VRT3 Adjustable Unloader 4,500 PSI (Black) No Knob

SKU: VRT3-310A

Brand: Mecline

$51.94

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Newly introduced Mecline VRT3 Unloader with out knob is an updated version of the Arrow Line VRT unloader with a stronger valve body with less porosity.


New Design Features:
• Interior Design – more efficient flow and operation
• Dual Locking Nuts – vibration resistant for setting maximum pressures
• New Spring Material – more resistant to fatigue, powder paint resists rusting
• Piston – large diameter, more strength and contact area for shifting alignment
• Discharge Nipple – sealing o-ring has been moved to the lower part of the thread, increases hydro strength and fitting strength
• Shutter Valve – hex design, less contact area for smooth shifting (prevents binding). larger size, longer life and more positive shifting


Featuring:
• Forged valve body – excellent strength
• Two inlet ports
• Two by-pass ports
• Ultra thick inlet and discharge ports - added strength
• Color coded spring – easy valve identification
• All ports are FNPT


Specifications:
• Spring Color: Black
• Does not included black adjustment knob
• Replaces AL607XA
• Maximum Pressure: 4,495 PSI
• Max. Volume: 8.0 GPM
• Adjustable pressure
• Brass valve body
• Max. Fluid Temp.: 194° F.
• Inlet Ports (2): 3/8" FNPT
• Discharge Ports (1): 3/8” FNPT
• Bypass Ports (2): 3/8” FNPT
• Weight: 27.9 oz

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
