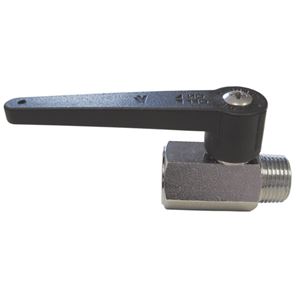

Valley 3/8" Mini Chrome-Brass Ball Valve F x M, Lever Handle
Specifications:• Chromed brass body, ball & stem• Teflon® seat & Viton® seals• Nylon lever handle• Rating (CWP): 200 PSI• Operating Temperature: -4º to 250º F• Inlet: 3/8" Female NPT • Outlet: 3/8" Male NPT• Weight: 3.5 oz
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Specifications:• Investment Cast Body and Cap• Teflon® seals and seats for smooth operation and proper seating characteristics• Rating (W.O.G.): 600 PSI (100 PSI steam) • Operating Temperature: -40º to 366º F• Adjustable stem packing• Blow-out proof stem• Chrome plated brass ball• Inlet: 1/2" Female NPT • Outlet: 1/2" Female NPT• Weight: 0.40 lbs
Fairview 125-6C 3/8 Hose ID x 3/8 Male Pipe Brass Hose Barb Fitting. Brass hose barbs are recommended for general purpose air, water and other low pressure applications. CA360 brass construction prevents rust and corrosion
Specifications:• Working Temperature: -40°F to +220°F, -40°C to +104°C • All hose barbs must be firmly fastened with hose clamps or ferrules• Weight: 0.06 lbs
Fairview 100-DC 1/2 MPT x 3/8 FPT Brass Hex Bushing. Fairview's Bushing Brass Pipe Fittings are excellent for use with Water, Oil, Air, Natural Gas, LP-Gas, LP-Gas to 1,200 PSI WP
TECHNICAL DATA SHEET
INSTALLATION DATA SHEET
Specifications:• Use with Brass, Steel, Iron Pipe• Working Pressure: 1,200 PSI• Burst Pressure: 5,000 PSI• Material: Brass• Pipe threads must be sealed using approved thread sealant• Weight: 0.07 lbs
