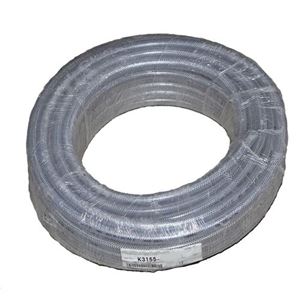

Kuri Tec® CLEARBRAID® K3155 Series RF PVC Hose. A lightweight standard wall crystal clear yarn reinforced hose suitable for a wide variety of food and beverage applications
Features:• Formulated with ingredients in compliance with FDA requirements • Meets USDA, 3A and CA Prop 65• Constructed with non-toxic compounds• Crystal clear – allows visual confirmation of product flow• Longitudinally-reinforced to reduce elongation under pressure• Self-extinguishing• Resistant to chemicals
Specifications:• Service Temp. Range: 25º F to 150º F• Nominal ID: 3/4” • Nominal OD: 1.031” • Length: 200’• Working Pressure @ 70º F: 150 PSI• Working Pressure @ 122º F: 85 PSI• Weight: 43.0 lbs.
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
5/16" Stainless Steel Worm Gear Hose Clamp Size 06 - 5/16" to 7/8"
Specifications:• Size: 06• Min. Clamp Dia.: 5/16”• Max. Clamp Dia.: 7/8”• Band Width: 5/16”• Band, Housing & Screw: Series 300 Stainless Steel• Weight: 0.2 oz
General Pump D10076 Quick Disconnect Coupler Plug Stainless Steel 1/4” x 1/4" NPT-F 6,000 PSI
Features: • Quick disconnect design• 304 Stainless steel
Specifications: • Quick Disconnect Coupler: Plug• Body Material: 304 Stainless steel• Plug Size: 1/4"• Thread: 1/4” NPT-F• Max Temp: 175°• Max Operating Pressure: 6,000 PSI• Replaces QCP1FSS• Weight: 0.06 lb
General Pump #2.3mm Fixed Chemical Injector, High Draw, Chemical Draw 20% with 3/8" NPT-M. This 20% fixed flow chemical injector is connected to the downstream side of the pressure pump and is activated when using a low pressure soap nozzle. Choose size based on flow rate of your pressure washer
Features• 20% injection draw rate• Made in the USA• A cost effective solution to your chemical application needs
Injector Specifications:• Size: # 2.3 mm (5.0 to 8.0 GPM)• Max Operating Pressure: 4,500 PSI• Max Temperature: 195° F• Inlet: 3/8” NPT-M• Outlet: 3/8” NPT-M • Chemical Port: 1/4” Hose Barb• Materials: Brass, Stainless Steel, Viton • Note: If between sizes, choose the smaller injector size• Weight: 0.30 lbs
• Delavan Nylon 3/4" QA X 3/4" HB Straight Fitting w/ O-Ring• Works with 5900, 7822FS and FB2 7900 Series Quick Attach Pumps
