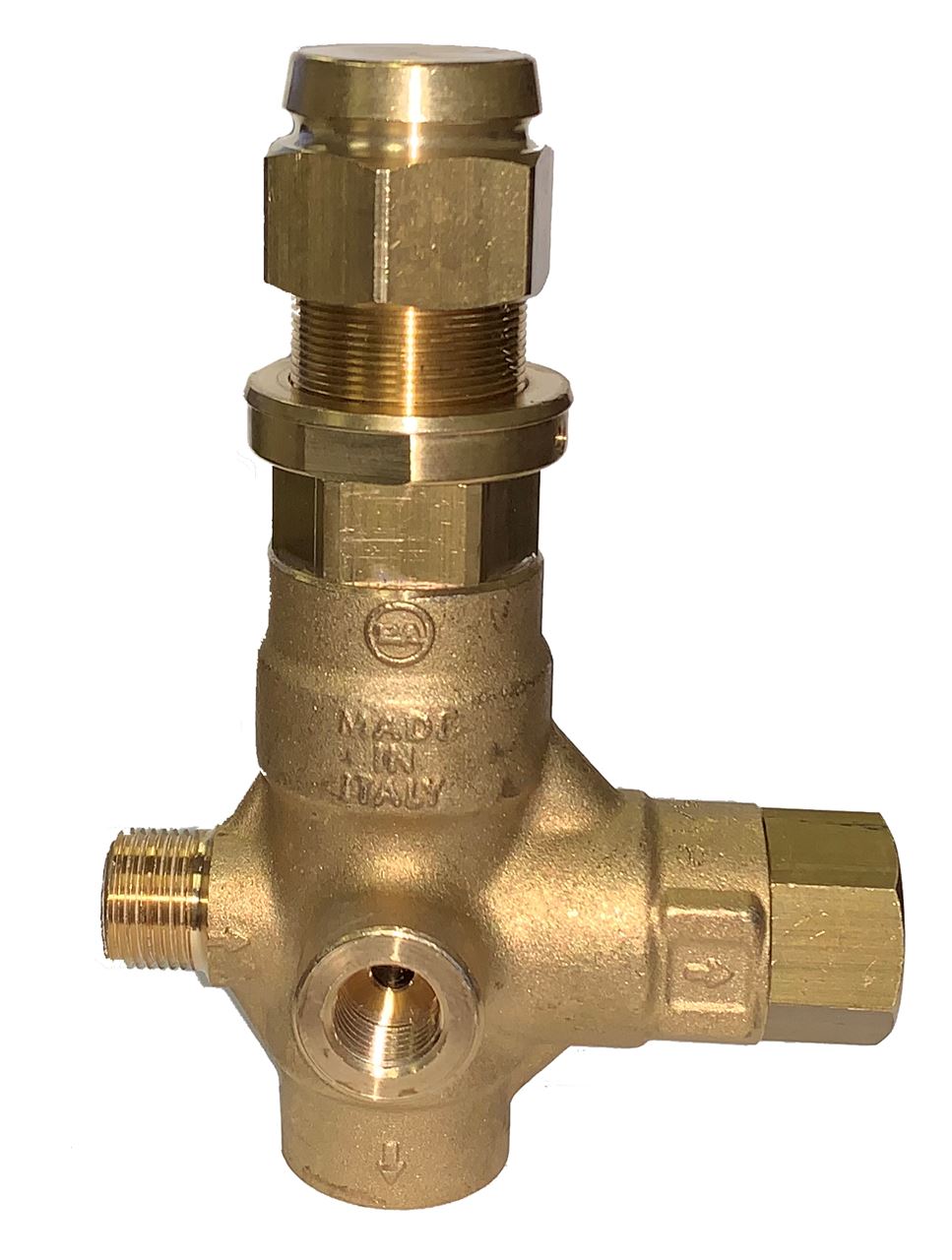

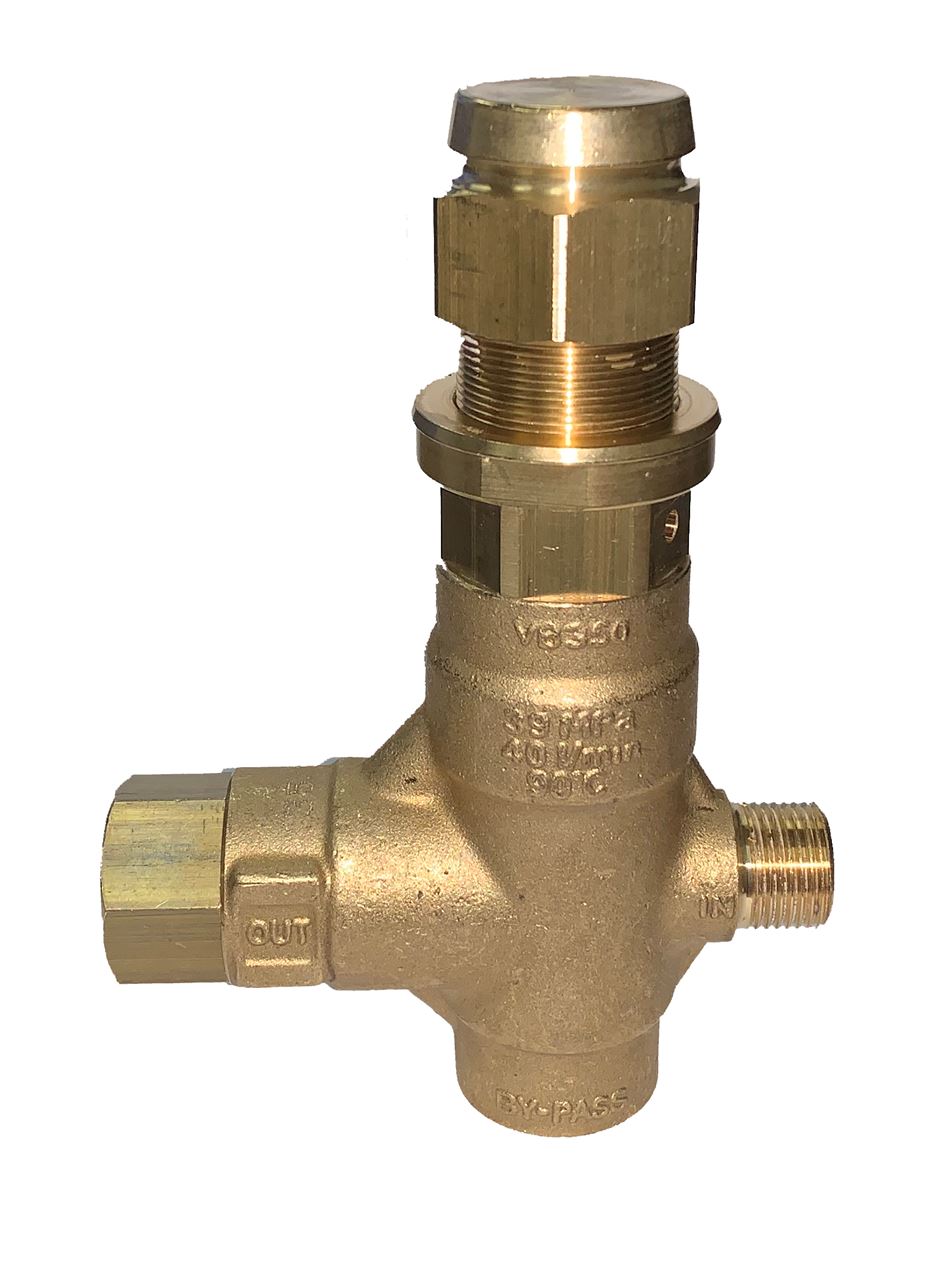

PA VB350S / GP YU5075KS pressure regulating unloader valve. At gun shut off, the water flow is bypassed at reduced pressure
Features:• Assembly equipped with a high pressure proof compensation• Compact dimensions• Sturdy steel and brass construction• Fixing system for the max. and min. pressure setting• Sst seat for check valve, replaceable• Easy maintenance
Specifications:• Rated Pressure: 5,100 PSI• Permissible Pressure: 5,600 PSI • Rated Flow Rate: 10.5 GPM• Rated Temperature: 195° F • Adjustable pressure• Forged brass body • Inlet Port: 3/8" MPT• Outlet Port: 3/8” FPT• Bypass Port: 1/2” FPT• Gauge Port: 1/4” FPT• Weight: 31.04 oz
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
General Pump 40° (White) #5.0 Quick Connect (Q) Spray Nozzle
Features• 5,000 PSI operating pressure• Made in the USA• Ceramic insert is resistant to wear• Through-hardened stainless steel orifices offer superior wear resistance compared to standard case hardened nozzles• Stainless steel housing resists cracking and wear• Resistant to most chemical• Large color coded tip protector on Q-type nozzles permits rapid identification of fan angle• Laser marked for clarity and durability
Specifications• Tip Angle: 40° (White)• Nozzle Size: 5.0• Operating Pressure: 5,000 PSI• Connection: 1/4” QC Plug• Weight: 0.05 oz
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
• Inlet Washer with Cone Filter 304SS 50/60 Mesh• For 3/4 FGH garden hose inlet connectors• Replaces AR7369
Featuring: • Sturdy steel and brass construction• By-pass control actuates at very low pressure values with reduced pressure in the delivery line when gun is shut• By-pass control actuates at very low pressure values with reduced pressure in the delivery line when gun is shut• Specially designed check valve prevents jamming and vibrations even in presence of sand and scales• Safety valve built in the delivery side
Specifications:• Unloader Valve (discharging) • Rated Pressure: 7,250 PSI • Permissible Pressure: 8,100 PSI• Rated Temperature: 195° F• Residual pressure at close down: 2,750 PSI • Min. bypass re-start pressure: 1,600 PSI• Rated Flow Rate: 21.0 GPM • Material: Steel and brass• Inlet Port: 1/2" F• Discharge Port: 1/2” F• Bypass Port: 1/2” F• AR Part # AR40397• Weight: 121.7 Oz
