Picture of Suttner ST-261S Unloader Valve 3,625 PSI W/ Micro Switch

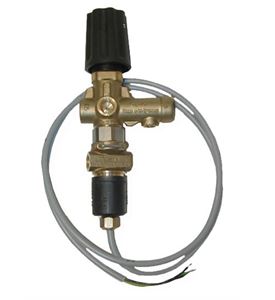

Suttner ST-261S Unloader Valve 3,625 PSI W/ Micro Switch

SKU: 200261550

Brand: Suttner America

$106.24

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Suttner ST-261S Unloader Valve 3,625 PSI with Micro Switch. Used for adjusting the maximum working pressure and safe guarding the high pressure water pipes. Ideal for steam combination applications. Low pressure limit eliminates need for additional metering devices


Features:
• Adjustable valve allows limit setting on both maximum pressure and minimum pressure
• Straight flow-through design minimizes pressure loss through valve
• Working components constructed of high-grade stainless steel. PTFE and Viton seals for maximum heat and chemical resistance
• Internal bypass valve can be easily accessed and repaired without removing unloader from unit


Specifications:
• Maximum Pressure: 3,625 PSI
• Minimum Pressure: 500 PSI
• Flow Rate: 8 GPM
• Normally closed bypass
• Amps: 125 VAC 5A, 240 VAC 3A
• Max Temperature: 176° F
• Inlet Port: 3/8" FNPT
• Outlet Port: 3/8” FNPT
• Bypass Port: 1/4” FNPT
• Weight: 1.86 lbs
