Picture of Suttner ST-75 Foam Nozzle, 4000 PSI, #5.0, 1/4" F

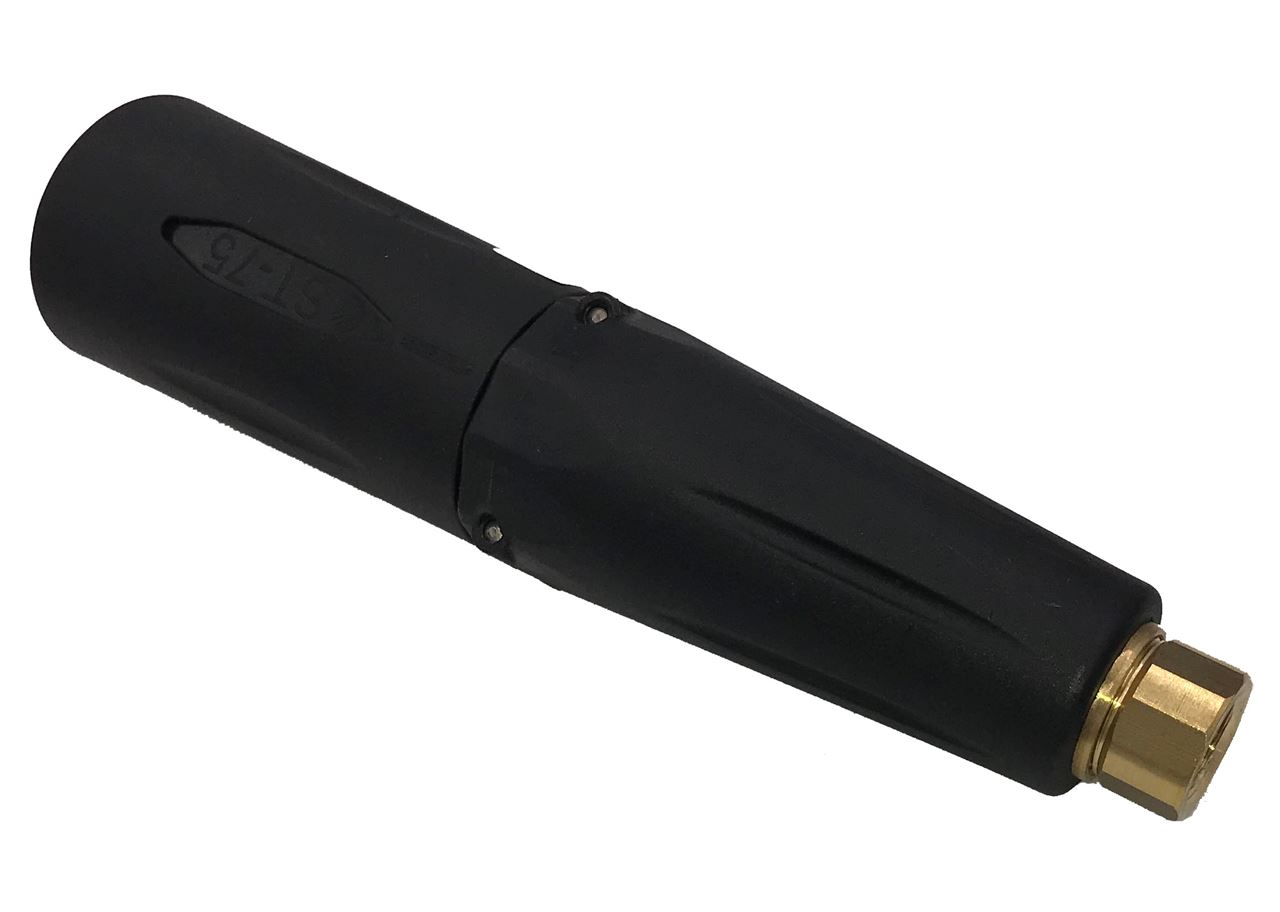

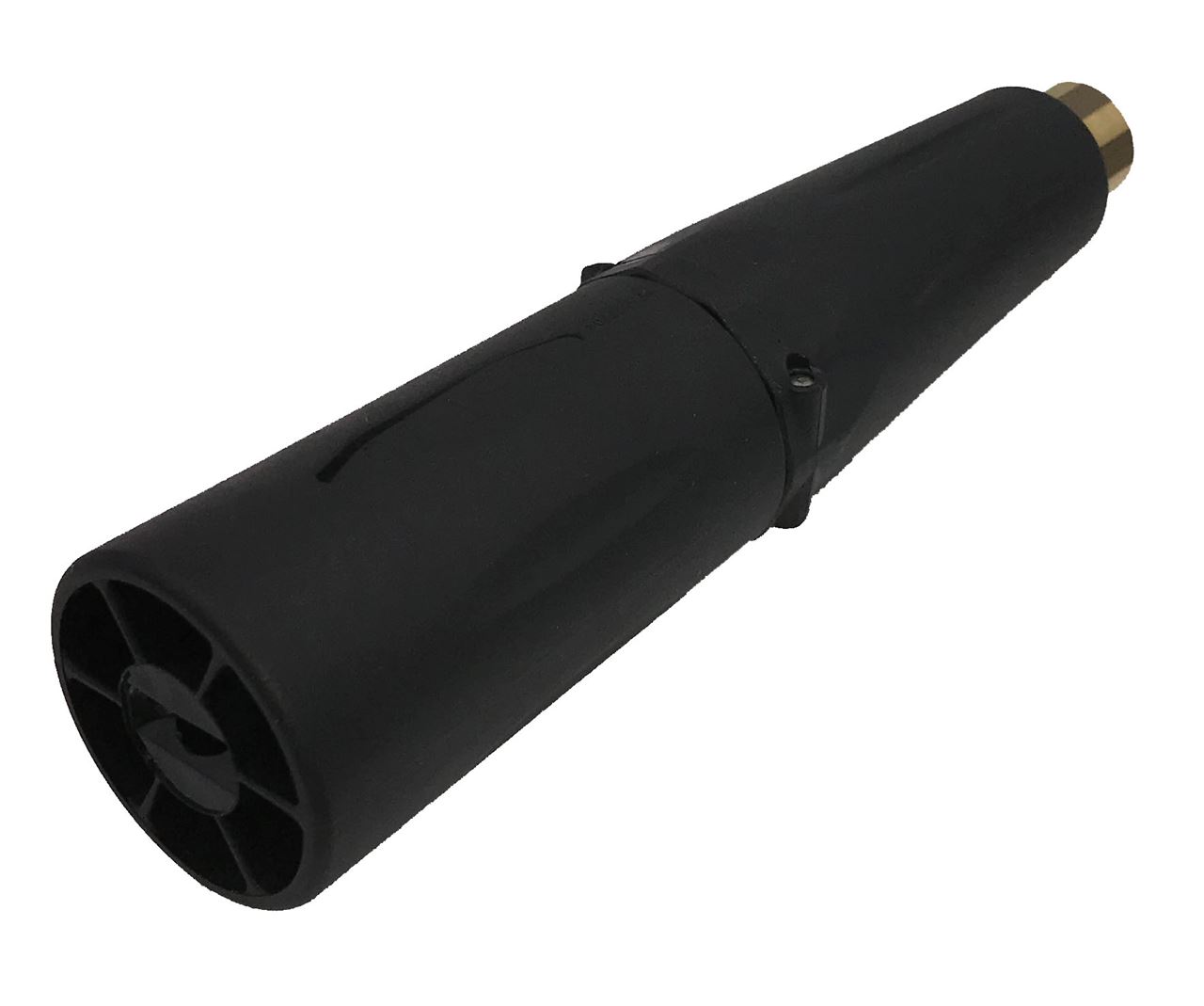

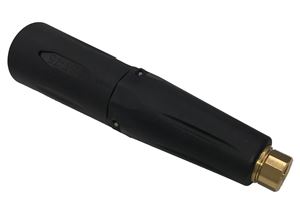

Suttner ST-75 Foam Nozzle, 4000 PSI, #5.0, 1/4" F

SKU: 200075552

Brand: Suttner America

$58.86

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Suttner ST-75 Brass Foam Head 4,000 PSI with #5.0 Air Injector Nozzle and 1/4" F Inlet. The ST-75 produces thick foam for an easy and safe application and to save on chemical usage by reducing splash and drift of chemicals


Features
• By means of the foam head ST-75 different foam applications are possible as the air injector nozzle is easily exchangeable and adaptable
• The flat spray nozzle can be infinitely adapted from the vertical position to the horizontal one
• The maximum flow is dependent on the chosen nozzle size
• By means of the integrated air injector in the foam head the air is sucked in on the face side
• Independent of the length of the lance a constant foam quality is guaranteed
• The spraying result is especially even as a high quality foam nozzle insert is used

ST-75 with ST-160 Chemical Injector on YouTube


Specifications
• Air Injector Nozzle Size: 5.0
• Max Pressure: 4,000 PSI
• Flow Rate: 1 - 6 GPM
• Max Temp: 212° F.
• Inlet: 1/4" Female
• Note: Suttner ST-160, ST-160M or St-164 Chemical or Foam injector required and is not included
• Weight: 0.31 lb



Please use Nozzle Chart to determine proper Spray Nozzle Size

Nozzle Chart



Use Spray Nozzle Size and Foam Nozzle Chart to determine correct Foam Nozzle to use

Foam Nozzle Chart



 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
