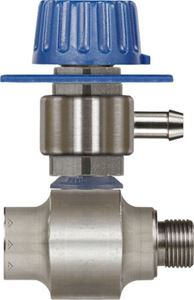

Suttner ST-160M Stainless Steel Single Chemical Injector w/Metering Valve, #5.5, 5000 Psi, 3/8" F x 3/8” M
Features• Food grade quality and specifications• Stainless steel construction• Conserves chemicals• Locks in position for accurate metering• Multiple metering positions
Specifications • Nozzle/Orifice Size: 5.5• Max Flow Rate: 21 GPM• Min Flow Rate: 1 GPM • Max Pressure: 5,000 PSI• Min Pressure: 1,000 PSI• Max Temp: 194° F.• Inlet: 3/8” Female• Outlet: 3/8” Male• Hose Barb: .35” ID hose• Weight: 1.25 lb
Please use Nozzle Chart to determine proper nozzle size
Note: If between sizes, choose the larger nozzle size
Nozzle Chart
See the ST-160M System Diagram below to determine the foam components needed
ST-160M System Diagram
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Suttner ST-75 Brass Foam Head 4,000 PSI with #10.0 Air Injector Nozzle and 1/4" F Inlet. The ST-75 produces thick foam for an easy and safe application and to save on chemical usage by reducing splash and drift of chemicals
Features• By means of the foam head ST-75 different foam applications are possible as the air injector nozzle is easily exchangeable and adaptable• The flat spray nozzle can be infinitely adapted from the vertical position to the horizontal one• The maximum flow is dependent on the chosen nozzle size• By means of the integrated air injector in the foam head the air is sucked in on the face side• Independent of the length of the lance a constant foam quality is guaranteed• The spraying result is especially even as a high quality foam nozzle insert is used
ST-75 with ST-160 Chemical Injector on YouTube
Specifications • Air Injector Nozzle Size: 10.0• Max Pressure: 4,000 PSI• Flow Rate: 1 - 6 GPM• Max Temp: 212° F.• Inlet: 1/4" Female• Note: Suttner ST-160, ST-160M or St-164 Chemical or Foam injector required and is not included• Weight: 0.31 lb
Please use Nozzle Chart to determine proper Spray Nozzle Size
Use Spray Nozzle Size and Foam Nozzle Chart to determine correct Foam Nozzle to use
Foam Nozzle Chart
Features:• Suitable for self service car wash applications• Light weight• Highly flexible• True non-marking, abrasion and chemical resistant• Easy to clean• Matte finish, feels like rubber
MADE IN USAEvery foot of ProPulse™ CLEANSTREAM™ is designed, engineered and manufactured in the USA, assembled using imported and/or domestic end fittings
Hose Construction• Inner Tube: Water and chemical resistant polyester and polyurethane• Reinforcement: One layer of high tensile steel braid• Cover: Matte finish TPU provides a lower coefficient of friction• Laminated: Bonded construction for long life
Specifications:• Hose Inner Diameter: 3/8" ID• Length: 18’• Working Pressure: 4,000 PSI• Burst Pressure: 12,000 PSI• Color: Blue• Max. Water Temperature: 140° F.• Ends: 3/8" Male NPT (Solid)• Black bend restrictor on one end • Weight 3.40 lbs
General Pump 40° x #5.5 M-Style Spray Nozzle 1/4” NPT-M
Features• 5,000 PSI operating pressure• Made in the USA• General Pump High Pressure Spray Tips feature a two piece design• Inserts are through hardened and pressed into a 303 stainless steel rust-resistant body for improved durability• The contour control nozzle chamber eliminates the need for flow straighteners • Resistant to most chemical• Laser marked for clarity and durability
Specifications• Tip Angle: 40°• Nozzle Size: 5.5• Operating Pressure: 5,000 PSI• Connection: 1/4” NPT-M• Weight: 0.05 oz
General Pump 25° x #5.5 M-Style Spray Nozzle 1/4” NPT-M
Specifications• Tip Angle: 25°• Nozzle Size: 5.5• Operating Pressure: 5,000 PSI• Connection: 1/4” NPT-M• Weight: 0.05 oz
