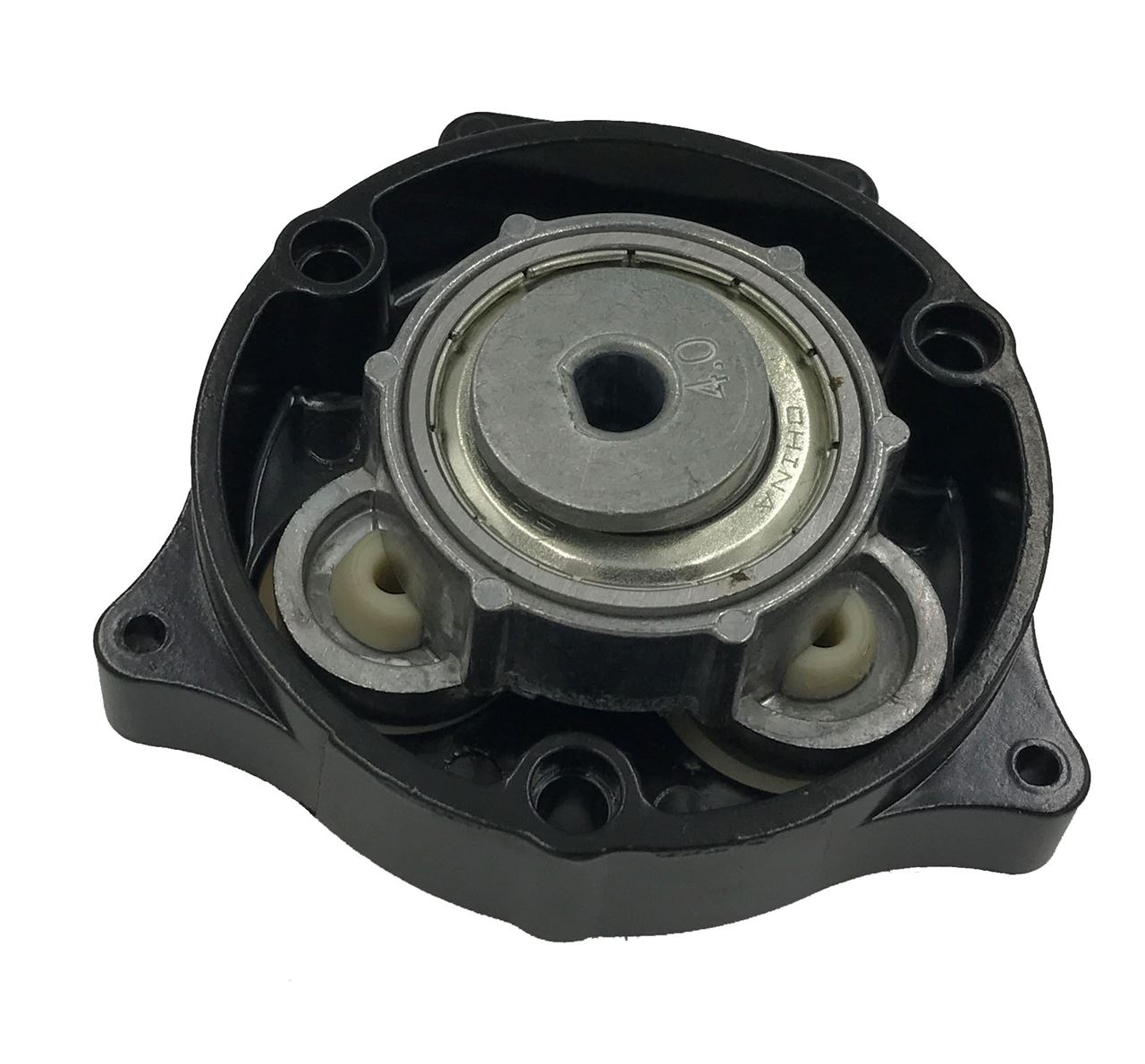

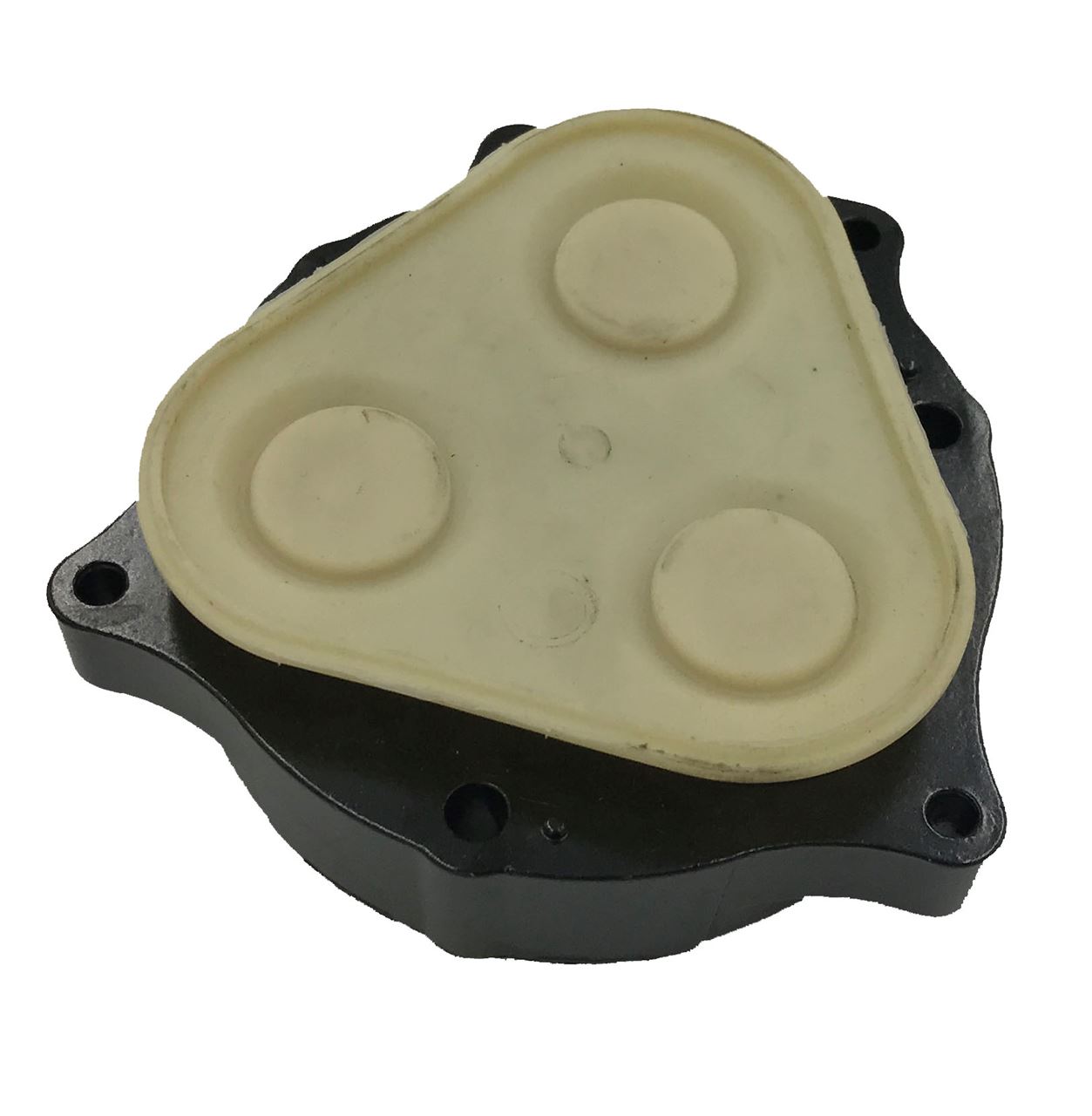

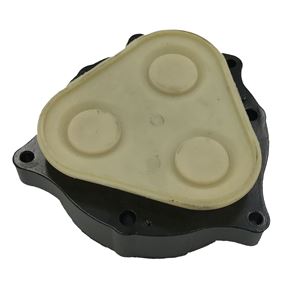

• Delavan valve housing assembly
• Works with Delavan 7801, 7802, 7811, 7812 & 7822FS series pumps
• Note: Does not work with I-Series pumps
• Includes valve and valve housing, Viton
• Replaces VHA7863-7F77

Delavan 50-076 Aluminum Heat Sink. Fits all 3" Diameter Delavan motors

Specifications:
• Snap-fit heat sinks will reduce motor heat up to 30%
• Works with Delavan 7801, 7802, 7811, 7812, 7822, 5800 & 5900 series 3-chamber/5-chamber pumps
• Help to extend the available run time of the pump as well as increase motor life
• Heat sinks are made of extruded aluminum with a clear finish
• Overall Dimensions:5.0” L x 3.75” W x 2.56” H
• Replaces 50-075
• Net Weight:0.55 Lbs.

Delavan PowerFLO™ 7822FS Flex Series 2.2 GPM 60 PSI Diaphragm Pump with 3/4” Quick Attach Ports. Thanks to the new 3/4” Quick Attach adapter system and bolt pattern, the Flex Pump can fit into most competitor spray systems that use 3/4” quick attach with ease. The new Flex Pump will be able to replace your old pump and provide a new level of performance and life. You can figuratively speaking “feel the difference in weight and productivity” between the two pumps. The new Delavan 12 Volt Flex Pumps represent years of testing and improvements, with state of the art components like improved pressure switches, efficient valve design and a new mounting and attachment system. These features create the best value in 12 Volt diaphragm pumps for your sprayer.

Features:
• Certified to NSF/ANSI Standard 61 & 372
• Made in the USA
• 100% Factory tested
• 2 Year warranty from date of purchase
• This demand pump will turn off when the spray gun or boom is turned off, saving energy and increasing the life of the pump

Motor:
• Type: 12 VDC permanent magnet, totally enclosed, non-ventilated
• Leads: 14 AWG, 6” long with 2-pin connector
• Max Amps: 8.5
• Duty Cycle: See Heat Rise graph

Materials of Construction:
• Motor Shell: Coated Steel
• Housing: Polypropylene
• Valves: Viton
• Diaphragm: Santoprene
• Fasteners: Stainless Steel

NSF/ANSI Certified:
• NSF/ANSI Standard 61 - Drinking Water System Components - Health Effects
• NSF/ANSI 372 and conforms with the lead content requirements for “lead free” plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act

Pump:
• Demand Switch – Operates only when liquid flow is required
• Type: 3-chamber positive displacement
• Capable of being run dry
• Excellent self-priming capability
• Liquid Temperature: 140°F Max.
• Priming Capabilities: 14’
• Max. Flow: 2.2 GPM
• Pressure Shut-Off: 60 PSI
• Inlet/Outlet Ports: 3/4 Quick Attach
• Packaging: Small box
• Weight: 6.0 lbs
