General Pump #2.3mm Fixed Chemical Injector, High Draw, Chemical Draw 20% with 3/8" NPT-M. This 20% fixed flow chemical injector is connected to the downstream side of the pressure pump and is activated when using a low pressure soap nozzle. Choose size based on flow rate of your pressure washer

Features
• 20% injection draw rate
• Made in the USA
• A cost effective solution to your chemical application needs

Injector Specifications:
• Size: # 2.3 mm (5.0 to 8.0 GPM)
• Max Operating Pressure: 4,500 PSI
• Max Temperature: 195° F
• Inlet: 3/8” NPT-M
• Outlet: 3/8” NPT-M
• Chemical Port: 1/4” Hose Barb
• Materials: Brass, Stainless Steel, Viton
• Note: If between sizes, choose the smaller injector size
• Weight: 0.30 lbs

General Pump #2.1mm Fixed Chemical Injector, High Draw, Chemical Draw 20% with 3/8" NPT-M. This 20% fixed flow chemical injector is connected to the downstream side of the pressure pump and is activated when using a low pressure soap nozzle. Choose size based on flow rate of your pressure washer

Features
• 20% injection draw rate
• Made in the USA
• A cost effective solution to your chemical application needs

Injector Specifications:
• Size: # 2.1 mm (3.0 to 5.0 GPM)
• Max Operating Pressure: 4,500 PSI
• Max Temperature: 195° F
• Inlet: 3/8” NPT-M
• Outlet: 3/8” NPT-M
• Chemical Port: 1/4” Hose Barb
• Materials: Brass, Stainless Steel, Viton
• Note: If between sizes, choose the smaller injector size
• Weight: 0.30 lbs

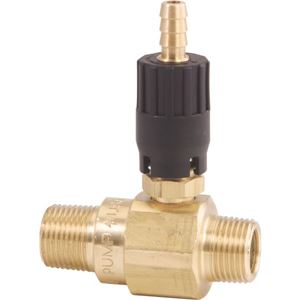

General Pump #1.8mm Adjustable Chemical Injector, High Draw, Chemical Draw Up To 20% with 3/8" NPT-M. This 0 - 20% adjustable flow chemical injector is connected to the downstream side of the pressure pump and is activated when using a low pressure soap nozzle. Choose size based on flow rate of your pressure washer

Features
• Up tp a 20% injection draw rate
• Made in the USA
• A cost effective solution to your chemical application needs

Injector Specifications:
• Size: # 1.8 mm (2.0 to 3.0 GPM)
• Max Operating Pressure: 4,500 PSI
• Max Temperature: 195° F
• Inlet: 3/8” NPT-M
• Outlet: 3/8” NPT-M
• Chemical Port: 1/4” Hose Barb
• Materials: Brass, Stainless Steel, Viton
• Note: If between sizes, choose the smaller injector size
• Weight: 0.30 lbs

Suttner ST-75 Brass Foam Head 4,000 PSI with #8.0 Air Injector Nozzle and 1/4" F Inlet. The ST-75 produces thick foam for an easy and safe application and to save on chemical usage by reducing splash and drift of chemicals

Features
• By means of the foam head ST-75 different foam applications are possible as the air injector nozzle is easily exchangeable and adaptable
• The flat spray nozzle can be infinitely adapted from the vertical position to the horizontal one
• The maximum flow is dependent on the chosen nozzle size
• By means of the integrated air injector in the foam head the air is sucked in on the face side
• Independent of the length of the lance a constant foam quality is guaranteed
• The spraying result is especially even as a high quality foam nozzle insert is used

ST-75 with ST-160 Chemical Injector on YouTube

Specifications
• Air Injector Nozzle Size: 8.0
• Max Pressure: 4,000 PSI
• Flow Rate: 1 - 6 GPM
• Max Temp: 212° F.
• Inlet: 1/4" Female
• Note: Suttner ST-160, ST-160M or St-164 Chemical or Foam injector required and is not included
• Weight: 0.31 lb

Please use Nozzle Chart to determine proper Spray Nozzle Size

Nozzle Chart

Use Spray Nozzle Size and Foam Nozzle Chart to determine correct Foam Nozzle to use

Foam Nozzle Chart
