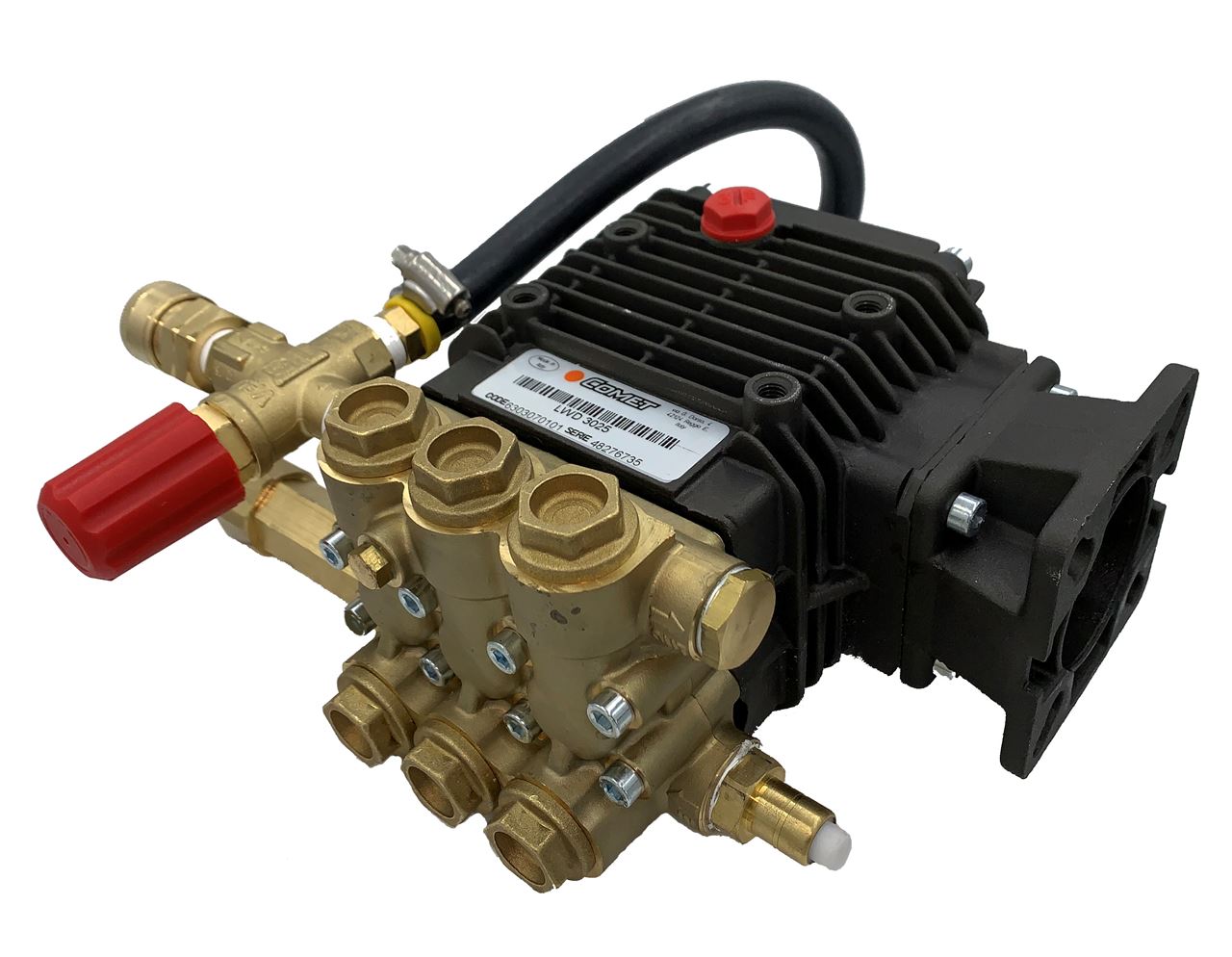

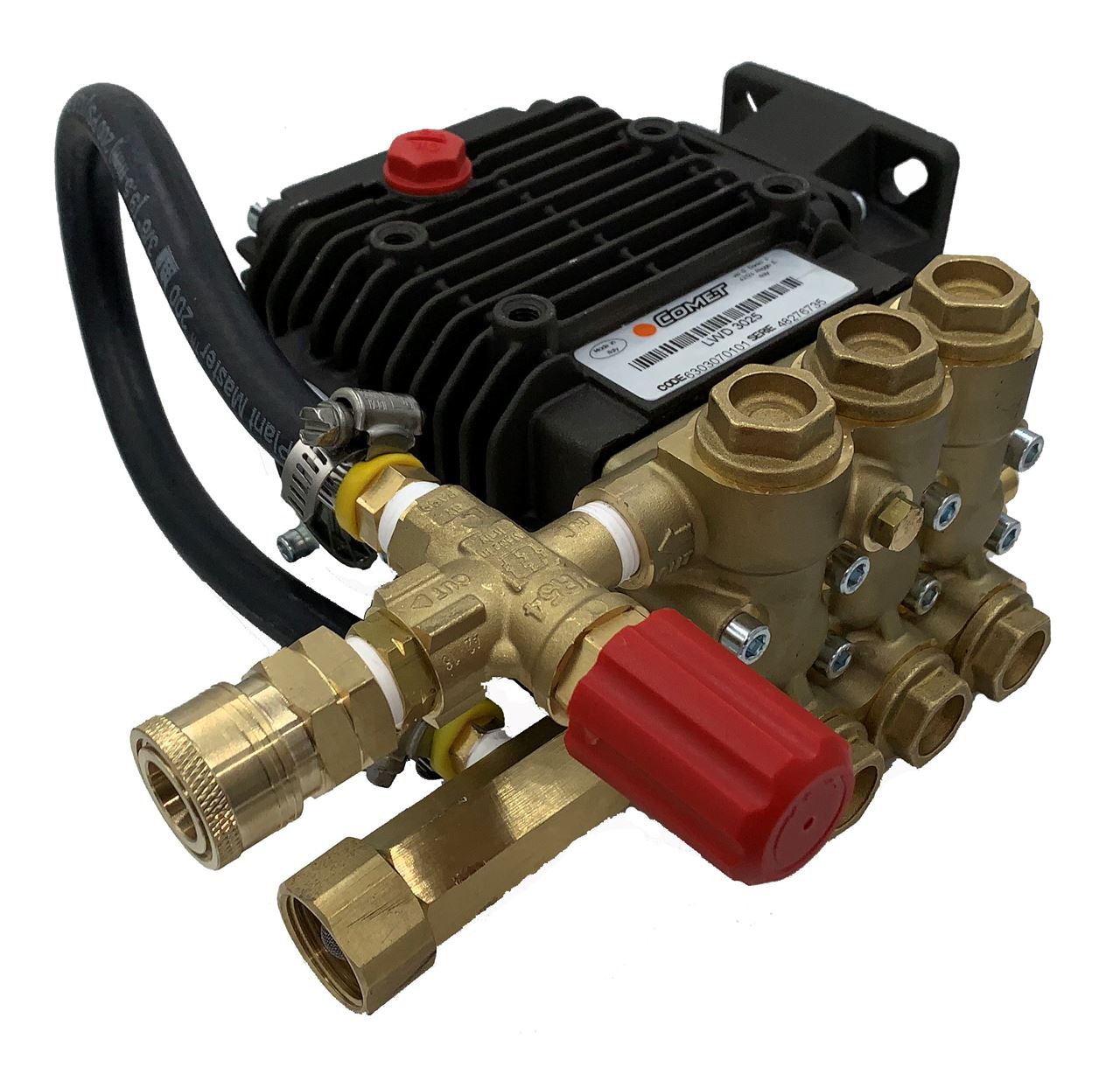

Comet LWD 3025 G 2500 PSI, 3.0 GPM Comet Direct Drive Pump Assembly with VR54 unloader, thermal relief valve and garden hose inlet connector. This pump has all the necessary components to make installation a breeze!!PUMP:• Comet LWD3025G Triplex Plunger Pump• Direct Drive with Gas Flange 3.0-6.5 HP SAE (2-9/16 center to center) • Max. Volume: 3.0 GPM• Max. Discharge Pressure: 2,500 PSI • Max. Pump Speed: 3,400 RPM• Shaft Diameter: 3/4” Hollow• Max. Horsepower Requirements: 6.5 GHP • Max. Fluid Temp.: 145º F• Brass head & valve covers• Forged Bronze Connecting Rods with Lifetime Warranty• Hardened Stainless Steel Piston Guides• High Efficiency Stainless Steel Check Valves • Abrasion Proof, Heat Resistant, Industrial Ceramic Plungers• High Quality Buna-Textile Double-Sealing V-Packings COMPONENTS: • Comet LWD3025G Triplex Plunger Pump• Mecline VR54 adjustable pressure unloader• Black bypass hose• Thermal relief valve• Inlet filter with 3/4" Female GHT• 3/8” QC brass socket• Mounting bolts• Note: Pumps are not tested prior to shipping and unloader will need to be adjusted • Weight: 16.0 lb
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
• Inlet Washer with Cone Filter 304SS 50/60 Mesh• For 3/4 FGH garden hose inlet connectors• Replaces AR7369
General Pump D11006 Quick Disconnect Coupler Plug Hardened Steel Zinc Plated 1/4” x 1/4" NPT-F 5,000 PSI
Features: • Quick disconnect design• Hardened Steel Zinc Plated
Specifications: • Quick Disconnect Coupler: Plug• Body Material: Hardened Steel• Plug Size: 1/4"• Thread: 1/4” NPT-F• Max Temp: 175°• Max Operating Pressure: 5,000 PSI• Replaces QCP1FS• Weight: 0.06 lb
Comet Premium Pump Oil (32 oz)
• For diaphragm and high pressure plunger pumps• Specially formulated non-detergent and non-foaming oil• Rated for superior rust and oxidation protection• Packaged in 32 oz bottles• Bottle Color: Black or White• Weight: 2.0 Lbs.
Specifications: • Works on most 3/4" horizontal & 7/8" vertical engines with solid shafts and a 3/16" keyway• 3/16" W x 1-1/2" L• Key may have to be cut to length
