• Delavan Nylon 3/4" QA X 3/4" HB Elbow Fitting w/ O-Ring
• Works with 5900, 7822FS and FB2 7900 Series Quick Attach Pumps

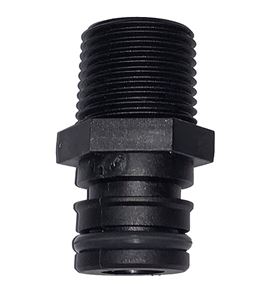

Everflo QA x 1/2″ Hose Barb Fitting. The Valley Industries EF-QC-A12 Universal Quick Attach x 1/2” Hose Barb MNPT Pump Port Fittings were designed to provide flexibility for your 12 volt diaphragm pump when it comes to connecting hose for a spot or broadcast sprayer

Specifications:
• Made of polypropylene material for increased longevity
• Features Quick Attach x 1/2” Hose Barb connection
• Approved for use with Round Up and other branded herbicides or pesticides
• Compatible with Everflo 12 volt diaphragm pumps with quick attach ports

Everflo QA x 3/8″ Hose Barb Fitting. The Valley Industries EF-QC-A38 Universal Quick Attach x 3/8” Hose Barb MNPT Pump Port Fittings were designed to provide flexibility for your 12 volt diaphragm pump when it comes to connecting hose for a spot or broadcast sprayer

Specifications:
• Made of polypropylene material for increased longevity
• Features Quick Attach x 3/8” Hose Barb connection
• Approved for use with Round Up and other branded herbicides or pesticides
• Compatible with Everflo 12 volt diaphragm pumps with quick attach ports

Delavan 7972-111E-SB PowerFLO™ Double Pump FB6 Series 10.0 GPM 70 PSI Diaphragm Pump with 3/4” Quick Attach Ports. Bypass Design – Continuous operation.

Features:
• The all new FB6 Double Pump is Delavan Fluid Power’s newest and strongest HIGH VOLUME diaphragm pump on the market
• Double Sided Design Engineered for Extreme Flow and up to 3x Longer Life
• High Torque Motor for Industry Leading Flow at Pressure
• Heavy Duty Reinforced Diaphragm Extends Pump Life in Demanding Applications
• Self-priming
• Life tested at 40 psi to over 1,500 hours
• Multiple intake/ output options for custom solutions - Can intake fluids from 1 or 2 separate sources, Output can be separate or combined
• Can be run dry for priming, but cannot operate 1 side onIy for extended periods
• Made in the USA
• 100% Factory tested
• 2 Year warranty from date of purchase

Motor:
• Volts: 12 VDC
• Amps: 20 Cont / 38 Surge
• Type: Permanent magnet, totally enclosed, non-ventilated
• Leads: 12 AWG, 6” long
• Recommended Wire is 12 AWG
• Recommended Fuse size is 40 Amp

Materials of Construction:
• Motor Shell: Coated Steel
• Housing: Polypropylene
• Valves: Santoprene
• Diaphragm: Santoprene/Stainless Steel
• Fasteners: Stainless Steel

Pump:
• Bypass Design – Continuous operation with internal bypass
• Type: 5-chamber positive displacement
• Liquid Temperature: 140° F Max.
• Priming Capabilities: 14’
• Open Flow: 10.0 GPM
• Pressure Setting: 70 PSI
• Inlet/Outlet Ports: 3/4” Quick Attach
• Heat sink recommended (Part # 50-126)
• Packaging: Small box
• Weight: 12.5 lbs
