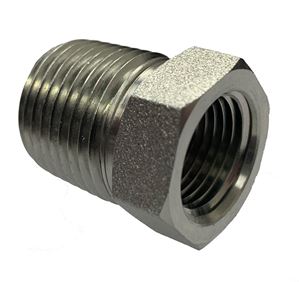

Accutek® S1010-CB Steel Hex Bushing 3/8 MPT x 1/4 FPT Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.
TECHNICAL DATA SHEET
INSTALLATION DATA SHEET
Specifications:• Applications - Water, Oil, Air • Working Pressure: 4,000 PSI• Burst Pressure: 16,000 PSI• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Pipe threads must be sealed using approved thread sealant• Weight: 0.06 lbs
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Accutek® S1022-C Steel Male Hex Nipple 3/8 Male Pipe x 3/8 Male Pipe Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.
Specifications:• Applications - Water, Oil, Air • Working Pressure: 4,000 PSI• Burst Pressure: 16,000 PSI• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Pipe threads must be sealed using approved thread sealant• Weight: 0.09 lbs
Accutek® S1022-B Steel Male Hex Nipple 1/4 Male Pipe x 1/4 Male Pipe Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.
Specifications:• Applications - Water, Oil, Air • Working Pressure: 5,000 PSI• Burst Pressure: 20,000 PSI• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Pipe threads must be sealed using approved thread sealant• Weight: 0.06 lbs
Accutek® S1001-C Steel Female Tee 3/8 Female Pipe x 3/8 Female Pipe x 3/8 Female Pipe Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.
Specifications:• Applications - Water, Oil, Air • Working Pressure: 4,000 PSI• Burst Pressure: 16,000 PSI• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Pipe threads must be sealed using approved thread sealant• Weight: 0.25 lbs
Fairview 125-4C 1/4 Hose ID x 3/8 Male Pipe Brass Hose Barb Fitting. Brass hose barbs are recommended for general purpose air, water and other low pressure applications. CA360 brass construction prevents rust and corrosion
Specifications:• Working Temperature: -40°F to +220°F, -40°C to +104°C • All hose barbs must be firmly fastened with hose clamps or ferrules• Weight: 0.10 lbs
