Valley Industries SHC-F Snapper Hose Clamp, Double Tooth

Specifications:
• Size: F
• Min. Clamp Dia.: 0.616”
• Max. Clamp Dia.: 0.707”

• Inlet Washer with Cone Filter 304SS 50/60 Mesh
• For 3/4 FGH garden hose inlet connectors
• Replaces AR7369

Accutek® S1022-C Steel Male Hex Nipple 3/8 Male Pipe x 3/8 Male Pipe Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.

Specifications:
• Applications - Water, Oil, Air
• Working Pressure: 4,000 PSI
• Burst Pressure: 16,000 PSI
• Working Temperature: -65°F (-54°C) to 250°F (120°C)
• Pipe threads must be sealed using approved thread sealant
• Weight: 0.09 lbs

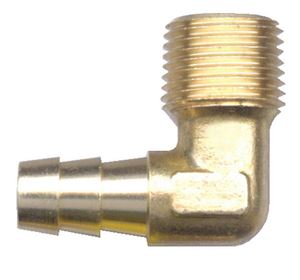

Fairview 139-6D 3/8 Hose ID x 1/2 Male Pipe Brass 90° Elbow Hose Barb Fitting. Brass hose barbs are recommended for general purpose air, water and other low pressure applications. CA360 brass construction prevents rust and corrosion

Specifications:
• Working Temperature: -40°F to +220°F, -40°C to +104°C
• All hose barbs must be firmly fastened with hose clamps or ferrules
• Weight: 0.11 lbs
