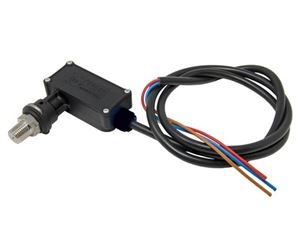

PA PR16 / General Pump YPRESSWITCH 5,000 PSI Pressure Switch with 580 PSI (Black) activation and 1/4" NPT-M stainless steel inlet. Electro-mechanical device, which, upon reaching a pre-set pressure (580 PSI) , opens or closes an electrical control contact
Specifications• Activation (Black) PSI: 580• Max. Voltage: 250• Permissible Pressure: 5,000 PSI• Rated Temp: 165° F• Max. Curr. Strength: 16 (A) – resistive load - 6 (A) – inductive load • Electrical insulation: 55 IP• Connection Material: Stainless Steel• Cable Length: 47" (1200 mm)• Electric Wire: 3 x 1 mm• Inlet: 1/4" NPT-M• Weight: 6.56 oz.
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
General Pump D10076 Quick Disconnect Coupler Plug Stainless Steel 1/4” x 1/4" NPT-F 6,000 PSI
Features: • Quick disconnect design• 304 Stainless steel
Specifications: • Quick Disconnect Coupler: Plug• Body Material: 304 Stainless steel• Plug Size: 1/4"• Thread: 1/4” NPT-F• Max Temp: 175°• Max Operating Pressure: 6,000 PSI• Replaces QCP1FSS• Weight: 0.06 lb
PA PR5 / General Pump YPRESSWITCH535 5,000 PSI Pressure Switch with 360 PSI (Red) activation and 1/4 Bsp M brass inlet. Electro-mechanical device, which, upon reaching a pre-set pressure (360 PSI) , opens or closes an electrical control contact
Specifications• Activation (Red) PSI: 360• Max. Voltage: 250• Permissible Pressure: 5,000 PSI• Rated Temp: 165° F• Max. Curr. Strength: 6 (A) – resistive load - 2 (A) – inductive load • Electrical insulation: 55 IP• Connection Material: Brass• Cable Length: 39.4" (1000 mm)• Electric Wire: 3 x 0.75 mm2• Inlet: 1/4 Bsp M• Weight: 4.83 oz.
General Pump 15° (Yellow) #5.5 Quick Connect (Q) Spray Nozzle
Features• 5,000 PSI operating pressure• Made in the USA• Ceramic insert is resistant to wear• Through-hardened stainless steel orifices offer superior wear resistance compared to standard case hardened nozzles• Stainless steel housing resists cracking and wear• Resistant to most chemical• Large color coded tip protector on Q-type nozzles permits rapid identification of fan angle• Laser marked for clarity and durability
Specifications• Tip Angle: 15° (Yellow)• Nozzle Size: 5.5• Operating Pressure: 5,000 PSI• Connection: 1/4” QC Plug• Weight: 0.05 oz
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
General Pump 25° (Green) #5.5 Quick Connect (Q) Spray Nozzle
Specifications• Tip Angle: 25° (Green)• Nozzle Size: 5.5• Operating Pressure: 5,000 PSI• Connection: 1/4” QC Plug• Weight: 0.05 oz
