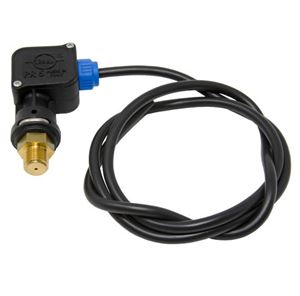

Picture of PA PR5 / GP Pressure Switch, 220 Switching (Blue), 1/4" M Brass 5,000 PSI

PA PR5 / GP Pressure Switch, 220 Switching (Blue), 1/4" M Brass 5,000 PSI

SKU: 29.0080.10

Brand: P.A. Srl

$16.54

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


PA PR5 / General Pump YPRESSWITCH521 5,000 PSI Pressure Switch with 220 PSI (Blue) activation and 1/4 Bsp M brass inlet. Electro-mechanical device, which, upon reaching a pre-set pressure (220 PSI) , opens or closes an electrical control contact


Specifications
• Activation (Blue) PSI: 220
• Max. Voltage: 250
• Permissible Pressure: 5,000 PSI
• Rated Temp: 165° F
• Max. Curr. Strength: 6 (A) – resistive load - 2 (A) – inductive load
• Electrical insulation: 55 IP
• Connection Material: Brass
• Cable Length: 39.4" (1000 mm)
• Electric Wire: 3 x 0.75 mm2
• Inlet: 1/4 Bsp M
• Weight: 4.83 oz.

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
