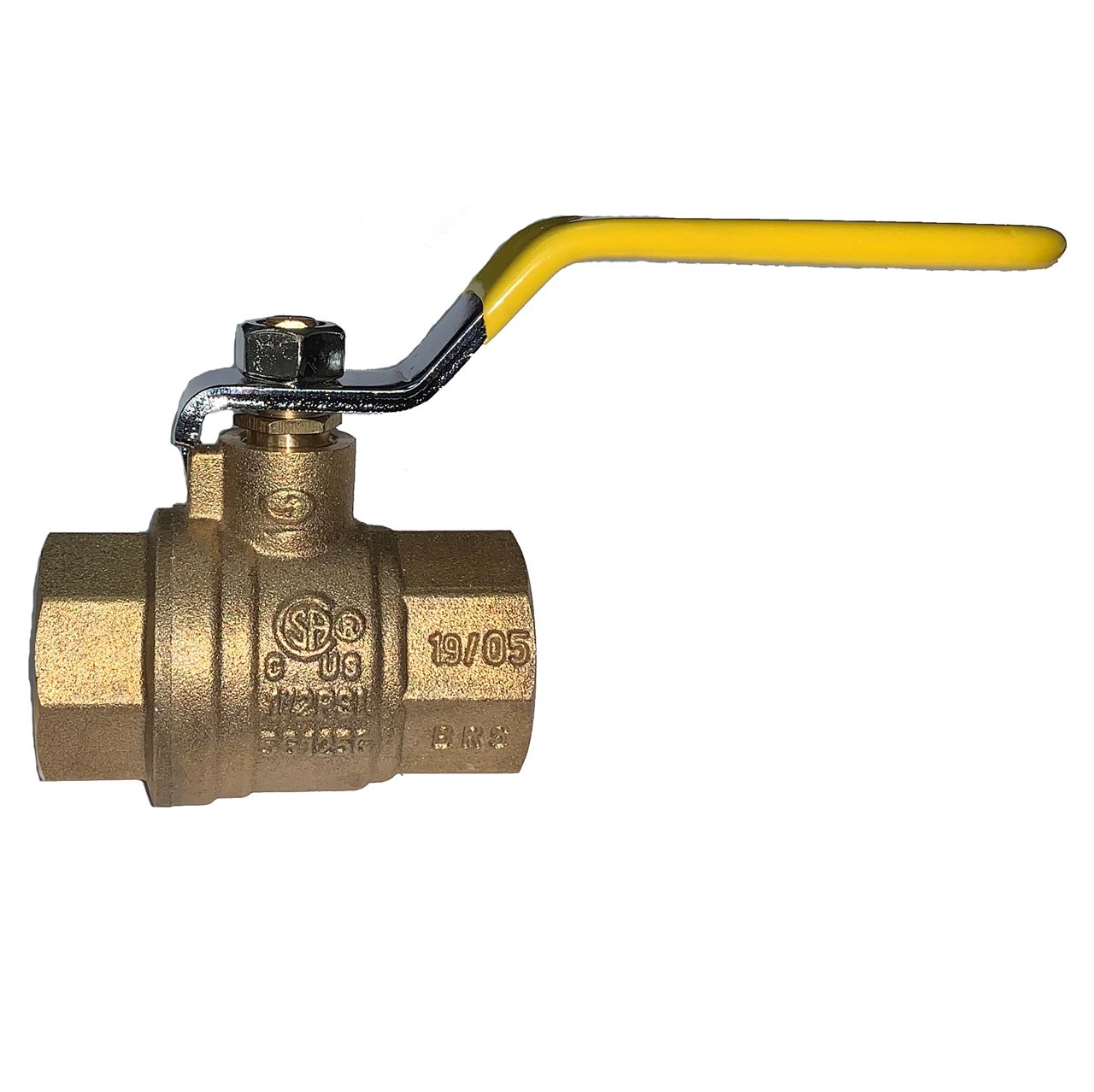

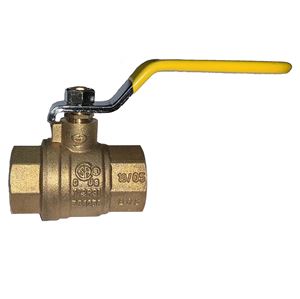

Fairview GAS-FLO™ BV2103-E 3/4" FPT Forged Brass Ball Valve 600 WOG, 150 WSP. Fairview's Forged Brass Ball Valves are full port and CSA, CGA & UL certified
TECHNICAL DATA SHEET
INSTALLATION DATA SHEET
Features:• Brass valves for use in W.O.G. = Water, Oil and Gas; W.S.P. = Working Steam Pressure applications• Two piece Body• Full Port• Blowout-Proof Stem• PTFE Seats• CSA - ANSI Z21.15/CGA 9.1, ASME B16.44, CGA CR 91-00 • CAN/CGA 3.16, ASME B16.33 & ASME B16.38• UL 842 (MHKZ): Manual valves-250 psi
Specifications:• W.O.G: 600• W.S.P: 150• Pipe Size: 3/4” FPT• Connection Type: Female to Female• Materials: Brass C3700, Chrome & Nickel Plated Steel, PTFE• Weight: 0.66 lbs
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Fairview GAS-FLO™ CP-2736 3/8” OD x 36” Short Nose POL x Short Nose POL Copper Propane Gas Hogtail. Fairview's Short POL To Short POL Copper hogtails are ideal for use with Propane Gas
Applications:• Propane gas copper pigtails and hogtails provide a flexible connection between the container valve and the regulator• Solder connections Copper tube for HOGTAILS is 3/8" O.D. by .049 WALL• Usage depends on application and requirements• With soldered ends and a wide selection of connections and lengths
Specifications:• Tube OD: 3/8”• Approx. Length: 36”• Tube Material: Copper• End: Short Nose P.O.L• End: Short Nose P.O.L• TO BE INSTALLED BY LICENSED GAS FITTERS ONLY • Weight: 0.85 lbs
