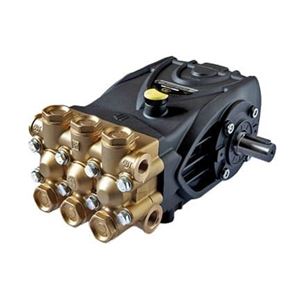

General TS1711 Triplex Plunger Pump. The preferred pump frame in the pressure cleaning industry

Features:
• Forged brass manifold
• Large-capacity, die-cast, anodized aluminum oil-bath crankcase
• Over-sized connecting rods for maximum life
• Heavy-duty tapered roller bearing
• Solid ceramic plungers with continuously lubricated packings
• Unitized stainless steel inlet and discharge valves

WARNING: High Pressure Systems require a primary pressure regulating device (i.e. regulator, unloader) and a secondary pressure relief device (i.e. pop-off valve, relief valve). Failure to install such relief devices properly could result in personal injury or damage to pump or property. GP and PRI Industries do not assume any liability or responsibility for the operation of the user’s high pressure system.

Specifications:
• Triplex Plunger Pump
• Solid Shaft for Belt or Gear Drive
• Max. Volume: 3.5 GPM
• Max. Discharge Pressure: 2,700 PSI
• Max. Pump Speed: 1450 RPM
• Shaft Diameter: 24mm Solid
• Max. Horsepower Requirements: 8.4 GHP
• Max. Fluid Temp.: 165° F.
• Inlet Ports (2): 1/2-14 BSPP-F
• Discharge Ports (2): 3/8-19 BSPP-F
• Drive Side: Standard right
• Note: Item for sale is PUMP ONLY as shown in picture and does not include unloader which is required for proper operation
• Replaces TS1331
• Weight: 32.0 lb.
