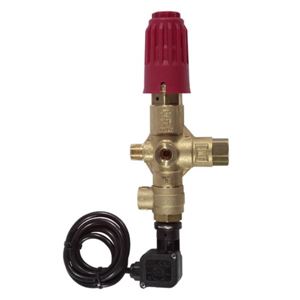

PA VB350 / PA YU5075KMS pressure regulating unloader valve with micro switch. Pressure regulating valve connected to an electric switch, electro-mechanic type, which when reaching a preset calibrated pressure, opens or closes an electric contact. At gun shut off, the water flow is bypassed at reduced pressure

Features:
• Sturdy construction in steel and brass
• Electrical insulation: class IP55
• Electric drive shunted from valve functions with two positions 1) Unloader working in pressure 2) Unloader with all the flow in bypass
• Mechanical control of the electric switch for a simple and reliable function
• Hexagonal shaped check valve to avoid jamming
• Rotating by-pass manifold G3/8 F
• Adjustable pressure
• Forged brass body .

Technical Manual

Specifications:
• Rated Pressure: 5,100 PSI
• Permissible Pressure: 5,600 PSI
• Rated Flow Rate: 10.5 GPM
• Rated Temperature: 195° F
• Max rated voltage: 250 V
• Breaking switch: 6 (A) resistive load - 6 (A) inductive load
• Cable length : 1200 mm electric wire : 3 x 1mm2
• Cable max ampere: 10 A
• Environment temperature: 75 °C Type of action: 1C
• Electrical component lifr: 50.000 commutationsi,T.85°C,a 250V in line with CEE 24- VDE 0630
• Inlet Port: 3/8" Bsp M
• Outlet Port: 3/8” Bsp F
• Bypass Port: 3/8” Bsp F
• Gauge Port: 1/4” Bsp F
• Weight: 42.75 oz
