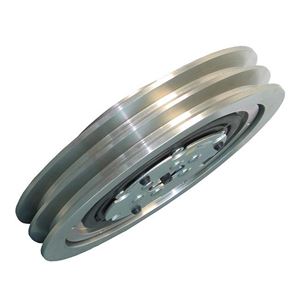

General Pump 101046 Clutch Assembly - 12 Volt Double “B” Groove Clutch Adapter Kit for 47, 59, 66 and ES/ESN Series Pumps, 9-3/4″ Pulley. Used in Carpet Cleaning, Vehicle Cleaning, Texture Spray Machines, High Pressure Pump applications.

Features:
• Solid forged rotor. A one-piece solid forged rotor means no chance of internal parts separation. They have an even wall thickness around the coil which gives optimum flux distribution, maximizing torque.
• High temperature, longer-life grease. Our special long-life grease has shown a significant improvement in life over other standard high temp greases.
• E-coating. Where possible, all parts in the clutch are e-coated to give maximum corrosion protection.
• High-temperature epoxy coil. To help prevent failure from vibration and outside contaminants, all coils are sealed in the coil shell with a high-temperature epoxy coating.
• Forged machined pulley. All GP models use a heavy-duty machined pulley. A stronger pulley resists damage due to abusive environments

Data Sheet

Specifications:
• Pulley Size & Type: 9-3/4” Pitch - B Groove
• Receives: “A” (4L) and “B” (5L)
• Power Requirement: 12V 50 Watts
• Material: Zinc-coated Steel
• Weight: 33.5 lbs
