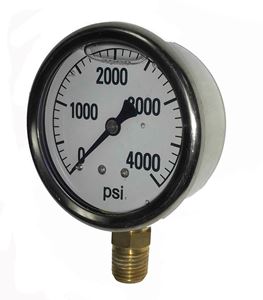

Picture of 4,000 PSI Bottom Mount 2-1/2" SS Pressure Gauge

4,000 PSI Bottom Mount 2-1/2" SS Pressure Gauge

SKU: 2141GXB4000

Brand: Valley Industries

$9.61

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Valley Industries Series 41 Single Scale OEM 4,000 PSI Bottom Mount 2-1/2" SS Pressure Gauge. These gauges are designed for use with any medium not corrosive to brass or bronze. Liquid-filled gauges are recommended for reducing shock caused by pressure fluctuations or vibration


Features:
• Dial Range: 0 – 4,000 PSI
• Casing: 2 1/2" Diameter
• Movement: Brass
• Bourdon Tube: Helical in phosphor bronze
• Pointer: Black enameled aluminum
• Dial: White aluminum
• Window: Acrylic
• Case Material: 304 Stainless steel
• Mounting: Bottom
• Connection Material: Brass
• Connection Size: 1/4" MNPT
• ASME/ANSI B40.1 Grade B (3-2-3%)
• Fill Material: Glycerin (liquid)
• Wetted Parts: Copper alloy
• Weight: 0.50 lbs.



 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.

Customers who bought this item also bought

Annovi Reverberi Pump Oil (16 oz)

SKU: AR64516

Annovi Reverberi AR64516 16 oz Crankcase Oil is formulated for AR and most other triplex pumps. Also used on AR Blue Clean Models: AR610, AR620, AR630 and AR767


Specifications:
• Special blend, 30W viscosity, non-detergent crank case lubricating oil
• Exceeds wear prevention requirements of all major hydraulic pump mfg's
• Contains anti-wear, rust inhibitor and deoxidizer additives
• Packaged in 16 oz bottles
NOT FOR USE IN CAT PUMPS or AXIAL PUMPS
• Weight: 1.0 Lbs.

  Price: $6.93

Safety Relief Valve 4,000 PSI, 3/8" MPT

SKU: AR5000-1

AR North America AR5000-1 Safety Relief Valve. Safety relief vale protects equipment and people with adjustable “Pop Off” protection. When predetermined pressure is reached, valve opens and release excess pressure.


Specifications
• Adjustable Range: 1,000 - 4,000 PSI
• Max Flow: 6 GPM
• Max Temp: 200° F.
• Inlet: 3/8" Male NPT
• Weight: 0.3 lbs

  Price: $12.53

GP Quick Connect Fittings 5,000 PSI (SS Plug & SS Socket)

SKU: 88.0155


General Pump 3/8" 5,000 PSI Stainless Steel Quick Disconnect Fittings (1 Plug & 1 Socket)


Features:
• Quick disconnect design
• Body Material: 304 Stainless steel
• 1 pc: General Pump 3/8 NPT-F Quick disconnect coupler socket with EPDM O-ring
• 1 pc: General Pump 3/8 NPT-F Quick disconnect coupler plug
• Max Temp: 175°
• Max Operating Pressure: 5,000 PSI
• Works with standard quick connects
• Weight: 0.30 lb



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"
  Price: $7.95

3,000 PSI Bottom Mount 2-1/2" SS Pressure Gauge

SKU: 2141GXB3000


Valley Industries Series 41 Single Scale OEM 3,000 PSI Bottom Mount 2-1/2" SS Pressure Gauge. These gauges are designed for use with any medium not corrosive to brass or bronze. Liquid-filled gauges are recommended for reducing shock caused by pressure fluctuations or vibration


Features:
• Dial Range: 0 – 3,000 PSI
• Casing: 2 1/2" Diameter
• Movement: Brass
• Bourdon Tube: Helical in phosphor bronze
• Pointer: Black enameled aluminum
• Dial: White aluminum
• Window: Acrylic
• Case Material: 304 Stainless steel
• Mounting: Bottom
• Connection Material: Brass
• Connection Size: 1/4" MNPT
• ASME/ANSI B40.1 Grade B (3-2-3%)
• Fill Material: Glycerin (liquid)
• Wetted Parts: Copper alloy
• Weight: 0.50 lbs.



  Price: $9.61
