General Pump 25° x #4.5 M-Style Spray Nozzle 1/4” NPT-M

Features
• 5,000 PSI operating pressure
• Made in the USA
• General Pump High Pressure Spray Tips feature a two piece design
• Inserts are through hardened and pressed into a 303 stainless steel rust-resistant body for improved durability
• The contour control nozzle chamber eliminates the need for flow straighteners
• Resistant to most chemical
• Laser marked for clarity and durability

Specifications
• Tip Angle: 25°
• Nozzle Size: 4.5
• Operating Pressure: 5,000 PSI
• Connection: 1/4” NPT-M
• Weight: 0.05 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

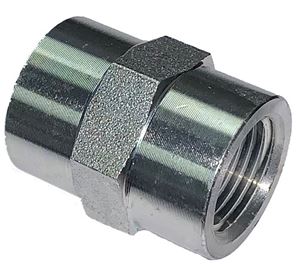

Accutek® S1003-D Steel Female Hex Coupling 1/2 Female Pipe x 1/2 Female Pipe Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.

Specifications:
• Applications - Water, Oil, Air
• Working Pressure: 3,000 PSI
• Burst Pressure: 12,000 PSI
• Working Temperature: -65°F (-54°C) to 250°F (120°C)
• Pipe threads must be sealed using approved thread sealant
• Weight: 0.23 lbs

General Pump 3/8" 4,000 PSI Quick Disconeect Coupler Fittings (1 Plug & 1 Socket)

Features:
• Working Pressure: 4,000 PSI
• 1 pc: 3/8” NPT-F Brass quick coupler socket
• 1 pc: 3/8” NPT-F Zinc Plated Hardened Steel quick disconnect coupler plug
• Works with standard quick connects
• Weight: 0.30 lb

General Pump D10072 Quick Disconnect Coupler Socket Stainless Steel 1/4” x 1/4" NPT-F 6,000 PSI

Features:
• Quick disconnect design
• 304 Stainless steel
• EPDM O-Ring

Specifications:
• Quick Disconnect Coupler: Socket
• Body Material: 304 Stainless steel
• Socket Size: 1/4"
• Thread: 1/4” NPT-F
• Max Temp: 175°
• Max Operating Pressure: 6,000 PSI
• Replaces QCS1FSS
• Weight: 0.13 lb
