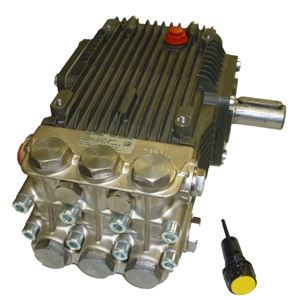

Picture of 4000PSI, 4.0GPM Annovi Reverberi Solid Shaft Pump (Long Shaft)

4000PSI, 4.0GPM Annovi Reverberi Solid Shaft Pump (Long Shaft)

SKU: RKA4G40HNL

Brand: Annovi Reverberi - AR North America

$445.76

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Annovi Reverberi / AR North America RKA4G40HNL pump with Long Shaft. RKA series plunger pumps are designed for a wide variety of high pressure washing applications. Annovi Reverberi RKA N Version with 24mm solid shaft series pumps are designed to belt drive or gear drive on gas engines and belt drive or flange coupling on electric motors


Features:
• Special thick solid ceramic plungers for long life and durability
• Oversized tapered roller bearings and the precision supports assure proper shaft alignment and maximum life.
• Precision cast cooling fins are anodized for maximum heat dissipation
• Nickel plated, forged brass head
• One-Piece connecting rods are oversized for strength and load disbursement
• Valve cages of special designed Ultra-Form provide positive seating and extended life


Specifications:
• Max. Volume: 4.0 GPM
• Max. Discharge Pressure: 4,000 PSI
• Max. Pump Speed: 1,750 RPM
• Shaft Diameter: 24mm Solid (long shaft)
• Shaft Length: 45mm (1.77")
• Max. Horsepower Requirements: 14.54 GHP (Industrial Grade)
• Max. Fluid Temp.: 140° F.
• Inlet Ports (2): 1/2" Female
• Outlet Ports (2): 3/8" Female
• Oil capacity: 15.0 oz
• Note: Item for sale is PUMP ONLY as shown in picture and does not include unloader which is required for proper operation
• Weight: 20.0 lb.



 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.

Customers who bought this item also bought
Picture of Annovi Reverberi Pump Oil (16 oz)

Annovi Reverberi Pump Oil (16 oz)

SKU: AR64516

Annovi Reverberi AR64516 16 oz Crankcase Oil is formulated for AR and most other triplex pumps. Also used on AR Blue Clean Models: AR610, AR620, AR630 and AR767


Specifications:
• Special blend, 30W viscosity, non-detergent crank case lubricating oil
• Exceeds wear prevention requirements of all major hydraulic pump mfg's
• Contains anti-wear, rust inhibitor and deoxidizer additives
• Packaged in 16 oz bottles
• NOT FOR USE IN CAT PUMPS or AXIAL PUMPS
• Weight: 1.0 Lbs.

  Price: $8.02
Picture of GP Quick Disconnect Coupler Fittings 4,000 PSI (St Plug & Br Socket)

GP Quick Disconnect Coupler Fittings 4,000 PSI (St Plug & Br Socket)

SKU: 88.0006


General Pump 3/8" 4,000 PSI Quick Disconeect Coupler Fittings (1 Plug & 1 Socket)


Features:
• Working Pressure: 4,000 PSI
• 1 pc: 3/8” NPT-F Brass quick coupler socket
• 1 pc: 3/8” NPT-F Zinc Plated Hardened Steel quick disconnect coupler plug
• Works with standard quick connects
• Weight: 0.30 lb



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"



  Price: $4.62
Picture of #4.0 MV Rotojet 5800 Rotating Nozzle

#4.0 MV Rotojet 5800 Rotating Nozzle

SKU: 0204006910

Mecline Rotojet 400 #4.0 Rotating Turbo Nozzle 5,800 PSI

Features:
• Offers 0° Impact, but with a 25° pattern
• High Strength forged brass
• Durable rubber/plastic cover
• Precision ceramic orifice and matching race

Specifications:
• Max Pressure: 5,800 PSI
• Nozzle Size #4.0
• Max. Temperature: 200° F
• 1/4" FPT inlet
• NOTE: All rotating nozzles should be started pointing downward
• Weight: 1.65 lbs


Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

  Price: $109.34
Picture of GP 40º (White) x #3.5 QC Spray Nozzle

GP 40º (White) x #3.5 QC Spray Nozzle

SKU: 940035Q


General Pump 40° (White) #3.5 Quick Connect (Q) Spray Nozzle


Features
• 5,000 PSI operating pressure
• Made in the USA
• Ceramic insert is resistant to wear
• Through-hardened stainless steel orifices offer superior wear resistance compared to standard case hardened nozzles
• Stainless steel housing resists cracking and wear
• Resistant to most chemical
• Large color coded tip protector on Q-type nozzles permits rapid identification of fan angle
• Laser marked for clarity and durability


Specifications
• Tip Angle: 40° (White)
• Nozzle Size: 3.5
• Operating Pressure: 5,000 PSI
• Connection: 1/4” QC Plug
• Weight: 0.05 oz


Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

  Price: $3.08
