Specifications:
• Automatically Resets at Cool Down
• Compact Design
• Trip Temperature: 145º F.
• Aluminum body
• Inlet thread size: 1/4" MPT
• Installs in bypass line or inlet side of pump head
• Weight: 1.5 oz

Specifications:
• Special blend, non-detergent crank case lubricating oil
• Exceeds wear prevention requirements of all major hydraulic pump mfg's
• Contains anti-wear, rust inhibitor and deoxidizer additives
• Packaged in 4.5 oz bottles
• Weight: 0.30 Lbs

This Annovi Reverberi / AR North America RMW2.2G24-EZ-SX, RMW22G24-EZ-SX aluminum vertical plunger pump will pump up to 2.2 GPM at 2,400 PSI. It spins at 3400 RPM in a direct drive system coupled with a gasoline engine. The matching flange provides convenient connection to most 7/8” shaft 4 - 7 HP engines. The hollow shafted pump includes a built-in pressure control valve, and chemical injection system. Comes with Thermal Relief Valve and Easy Start Valve (EZ).

Features:
• 3-Piston alternating volumetric pumps for use on cleaning units
• Check the HOLE in the ARM location relative to the inlet/outlet Port (2nd Picture)
• This SX pump is Back Mounted - 180º rotated shaft configuration (3rd picture)
• Pump body in die-cast aluminum alloy
• Pistons driven by swash plate mechanism
• Two bearing systems, to support the pump shaft and pistons
• Pistons in hardened and tempered steel
• Pump head in aluminum
• Double gasket sealing system
• Intake valves fitted above the pistons for greater efficiency
• Integral regulating valve
• Integral detergent suction system

Specifications:
• Max. Volume: 2.2 GPM
• Max. Discharge Pressure: 2,400 PSI
• Max. Pump Speed: 3,400 RPM
• Shaft Diameter: 7/8” Hollow
• Maximum Horsepower Requirements (Industrial): 4.8 GHP
• Maximum Horsepower Requirements (Standard): 5.9 GHP
• Inlet Port: 3/4" GHA (garden hose)
• Outlet Port: 22mm-14 (Twist Connect)
• Weight: 7.3 lb.

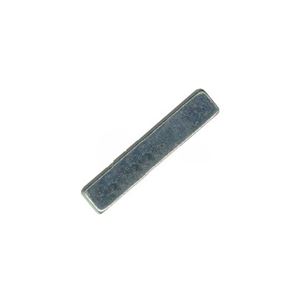

Specifications:
• Works on most 1" solid shaft engines with a 1/4" keyway
• 1/4" W x 1-5/16" L
• Key may have to be cut to length
