Picture of GP "TMT" In-Line Flow Switch, Mounts In Any Position

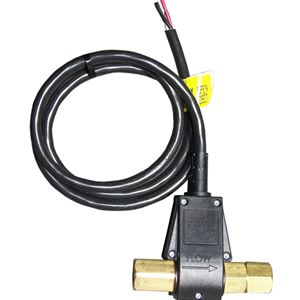

GP "TMT" In-Line Flow Switch, Mounts In Any Position

SKU: 100975

Brand: General Pump

Only $39.15

ADD TO CART
QTY:
ADD TO WISHLIST
Customer Product Rating
Product Description


General TMT Flow Switch. Tri-magnet technology in-line flow switch


Features
• Micro-switch technology eliminates reed switch
• Activates with 1.25 GPM flow
• Stainless Steel shuttle
• Minimal pressure drop up to 12 GPM flow
• Can be mounted in any position


Specifications
• Maximum Operating Pressure: 5,000 PSI
• Minimum Flow Required for Activation: 1.25 GPM
• Maximum Operating Flow: 12.0 GPM
• Operating Temperature Range: 40 - 180 ºF
• Electrical Lead Length: 48” - 18AWG
• Max Switching Voltage: 250 VAC
• Max Switching Current: 5 AMPS
• Inlet: 3/8” x 18 NPT-F
• Outlet: 3/8” x 18 NPT-F
• Replaces GP # 100934
• Materials: Brass, Stainless Steel, Plastic, Nickel-plated Neodymium
• Weight: 1.0 Lb

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
