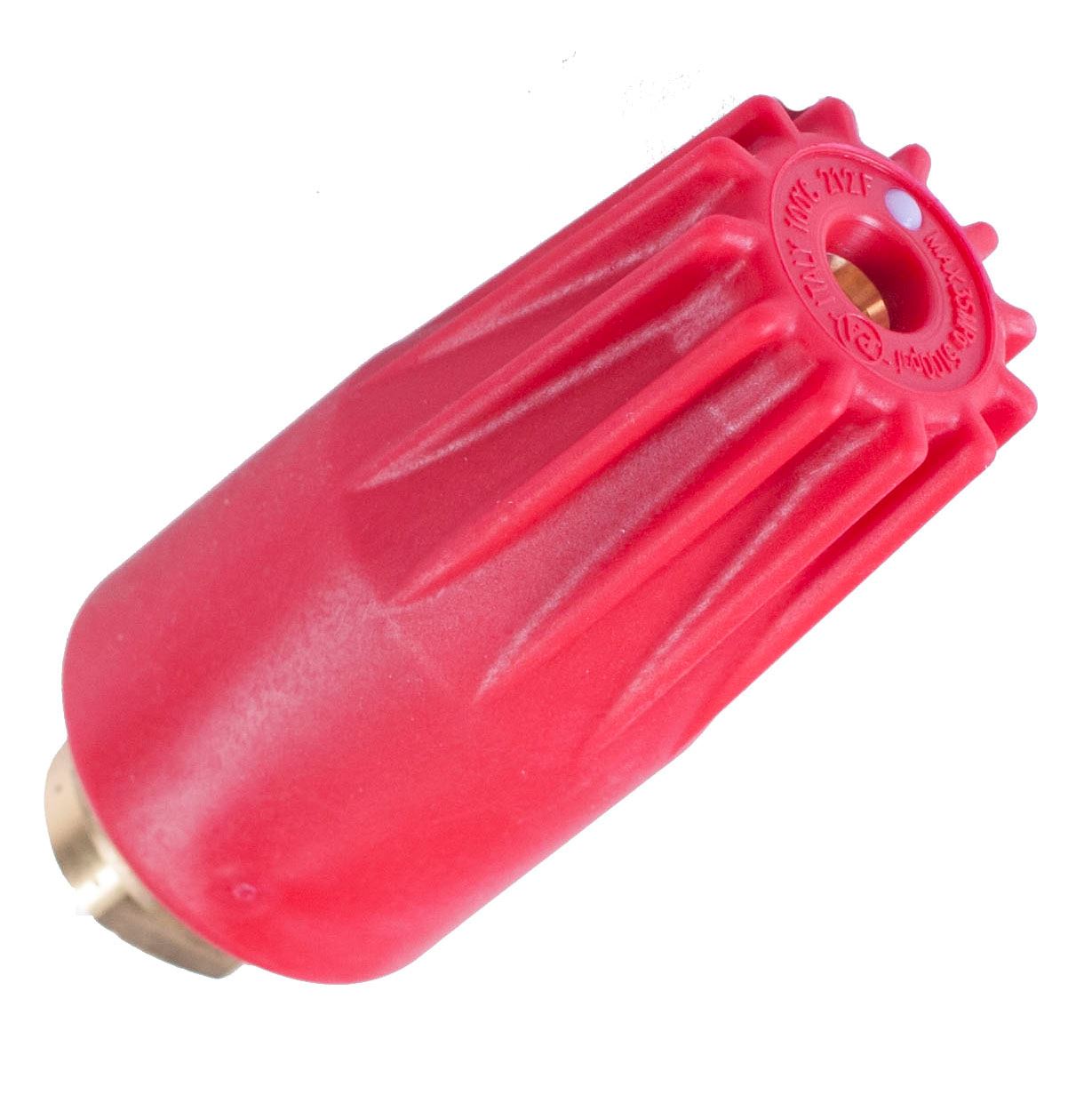

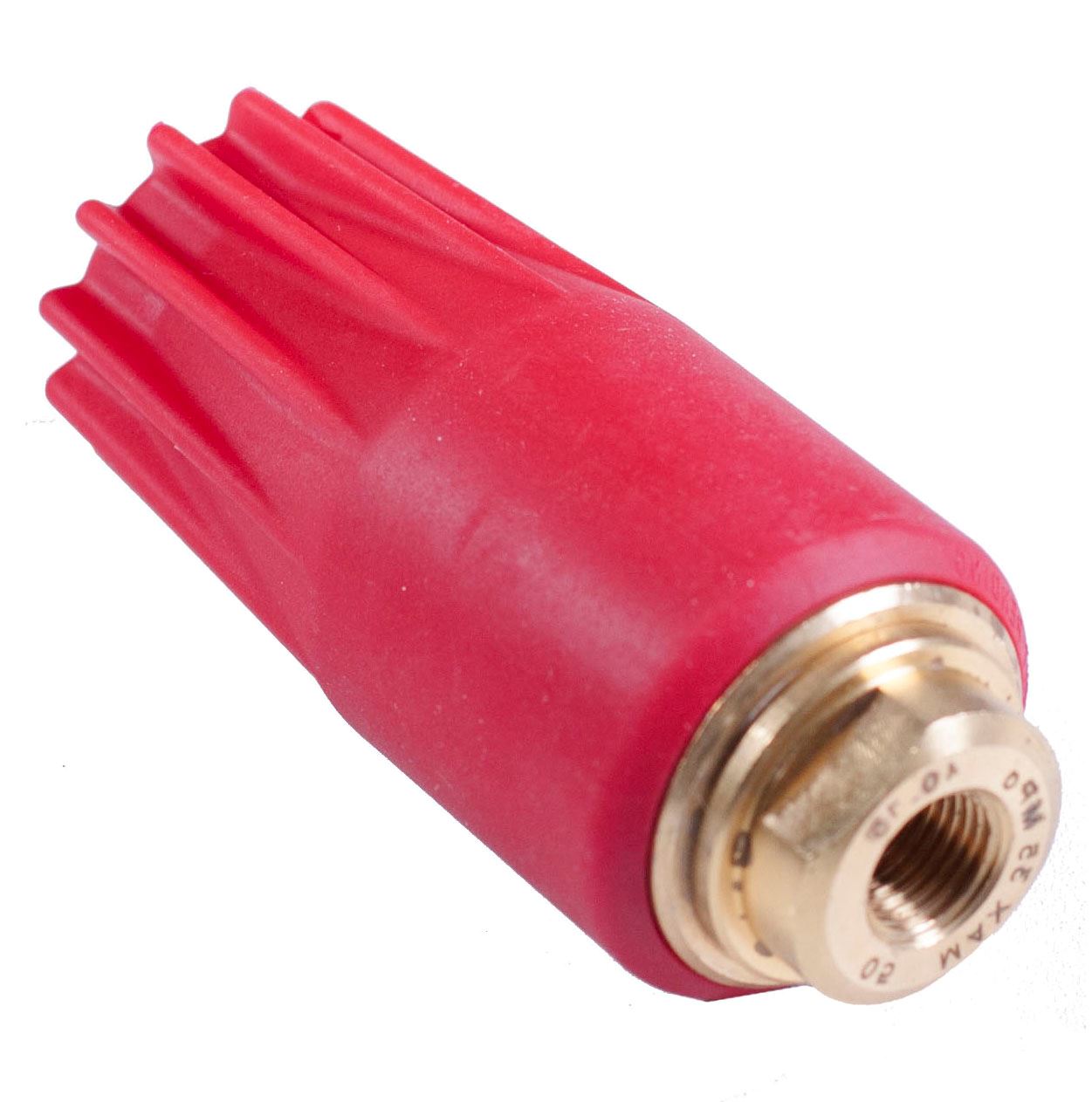

Features
• Offers 0° Impact, but with a 25° pattern
• Unique internal stabilization spring design allows for aim & shoot operation
• Nozzle can be pointed in any direction
• Shock resistant ceramic
• High Strength forged brass housing
• Durable rubber cover

Specifications
• Nozzle Size #8.0
• Max PSI: 5,100
• Max GPM: 9.0
• Max Temp.: 212° F
• Inlet: 1/4" FPT
• Minimum for operation: 2.4 GPM at 2,600 PSI
• Weight: 1.0 lbs

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

General Pump 40° (White) #6.0 Quick Connect (Q) Spray Nozzle

Features
• 5,000 PSI operating pressure
• Made in the USA
• Ceramic insert is resistant to wear
• Through-hardened stainless steel orifices offer superior wear resistance compared to standard case hardened nozzles
• Stainless steel housing resists cracking and wear
• Resistant to most chemical
• Large color coded tip protector on Q-type nozzles permits rapid identification of fan angle
• Laser marked for clarity and durability

Specifications
• Tip Angle: 40° (White)
• Nozzle Size: 6.0
• Operating Pressure: 5,000 PSI
• Connection: 1/4” QC Plug
• Weight: 0.05 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

General Pump 3/8" 4,000 PSI Quick Disconeect Coupler Fittings (1 Plug & 1 Socket)

Features:
• Working Pressure: 4,000 PSI
• 1 pc: 3/8” NPT-F Brass quick coupler socket
• 1 pc: 3/8” NPT-F Zinc Plated Hardened Steel quick disconnect coupler plug
• Works with standard quick connects
• Weight: 0.30 lb

PA VB 85/310 Rv and General YUB21405 blue spring trapped pressure unloader valve. At gun closure, the waterflow is discharged in bypass reducing the pressure in the system upstream of the valve

Featuring:
• Dynamic seals made up of O-ring and Back-up ring
• Optimized internal passages that guarantee reduced pressure loss
• Anti-rotation device of the piston positioned inside the valve and obtained by an hexagonal sector of the piston itself
• O-rings of the fittings positioned upstream to the thread : no risk of fittings ejected in case of overpressure
• Double feed connection
• Suitable for recycled water and strong detergents

Data Sheet

Specifications:
• Spring Color: Blue
• Permissible Pressure: 4,500 PSI
• Rated Pressure: 4,050 PSI
• Rated Flow Rate: 21.0 GPM
• Rated Temperature: 195° F
• Inlet Ports (2): 1/2" NPT F
• Outlet Port: 1/2” NPT F
• Bypass Port: 1/2” NPT F
• Replaces: 60.0485.65, VB 85/280, 60.0400.65, VB 80/280 and YUB2140
• Weight: 40.63 Oz
