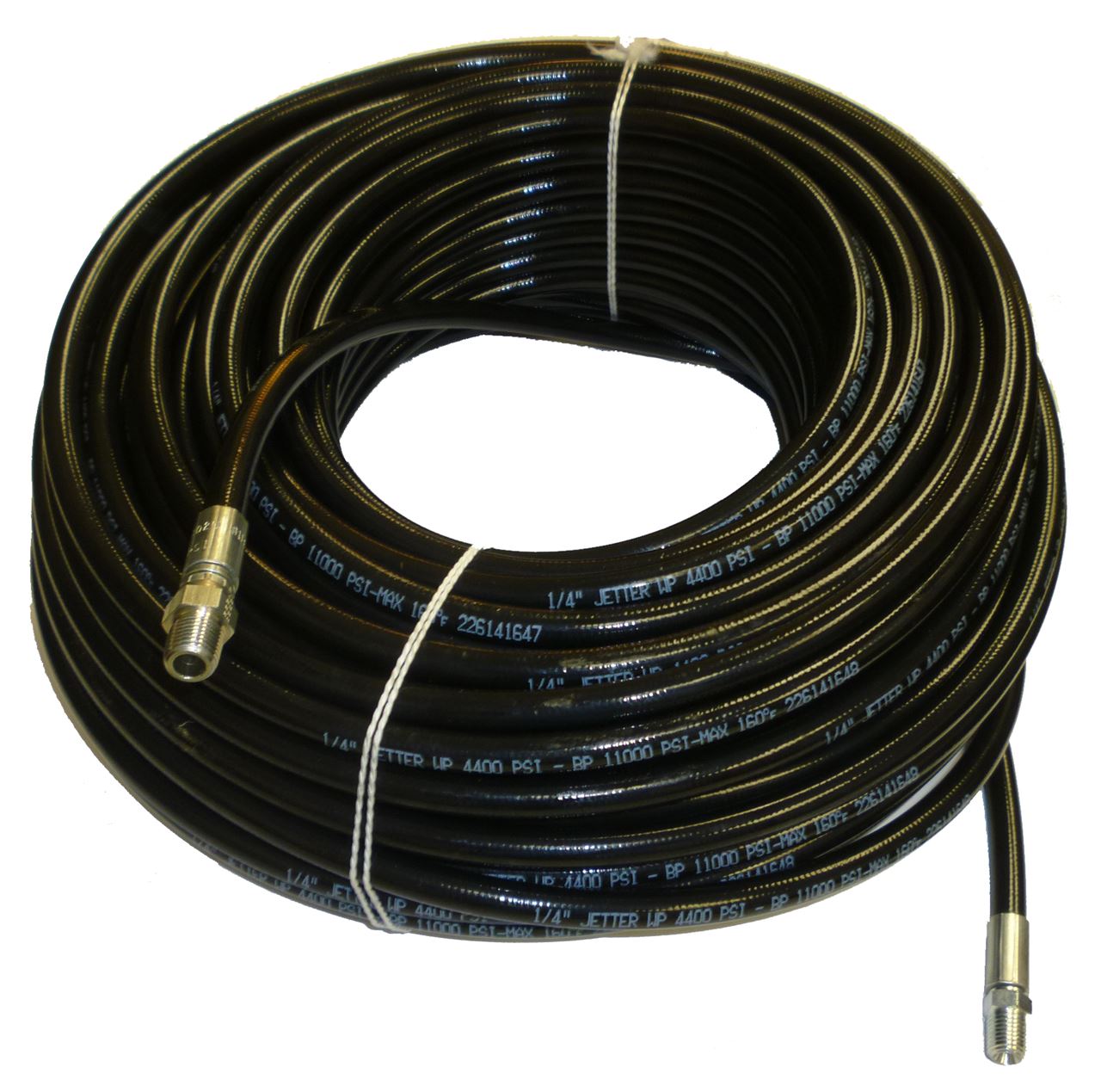

Propulse Jetter Clean 3/8” X 300’ Lateral Line and Drain Cleaner Sewer Hose. Ideal for consumer and commercial sewer jetters with operating pressures of 4,000 PSI or less. Jetter Clean hoses offer optimum flexibility and lightweight construction.

ProPulse, a Schieffer Company, backed by more than 90 years of innovation

MADE IN USA
Every foot of Propulse Jetter Clean is manufactured at our ISO9001:2008 certified factory in the USA using 100% domestically sourced materials

Features:
• Suitable for consumer and commercial applications
• Reinforcement: One layer of polyester braid
• Cover: Thermoplastic smooth finish with printed lay line
• Burst (Minimum): 2.5:1 working pressure
• Easily slides into sewer lines and pipes
• Glossy black abrasion resistant cover

Specifications:
• Inner Diameter: 3/8” ID
• Length: 300’
• Working (Maximum) Pressure: 4,000 PSI
• Burst (Minimum): 10,000 PSI
• Max. Fluid Temperature: 160º F.
• Inlet: 3/8” MPT (Swivel)
• Outlet: 3/8” MPT (Solid)
• Packaging: Wound on plastic reel
• Weight 35.7 lbs

Features
• Side jet pushes hose thru bends and corners
• 2 Backward jets drive nozzle forward and flushes and removes debris from sides of line
• Corrosion resistant stainless steel construction

Specifications
• Inlet: 1/4” FPT
• Nozzle Size: # 4.5
• Material: Stainless steel
• Maximum Pressure: 4,000 PSI
• Weight: 0.5 oz.

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

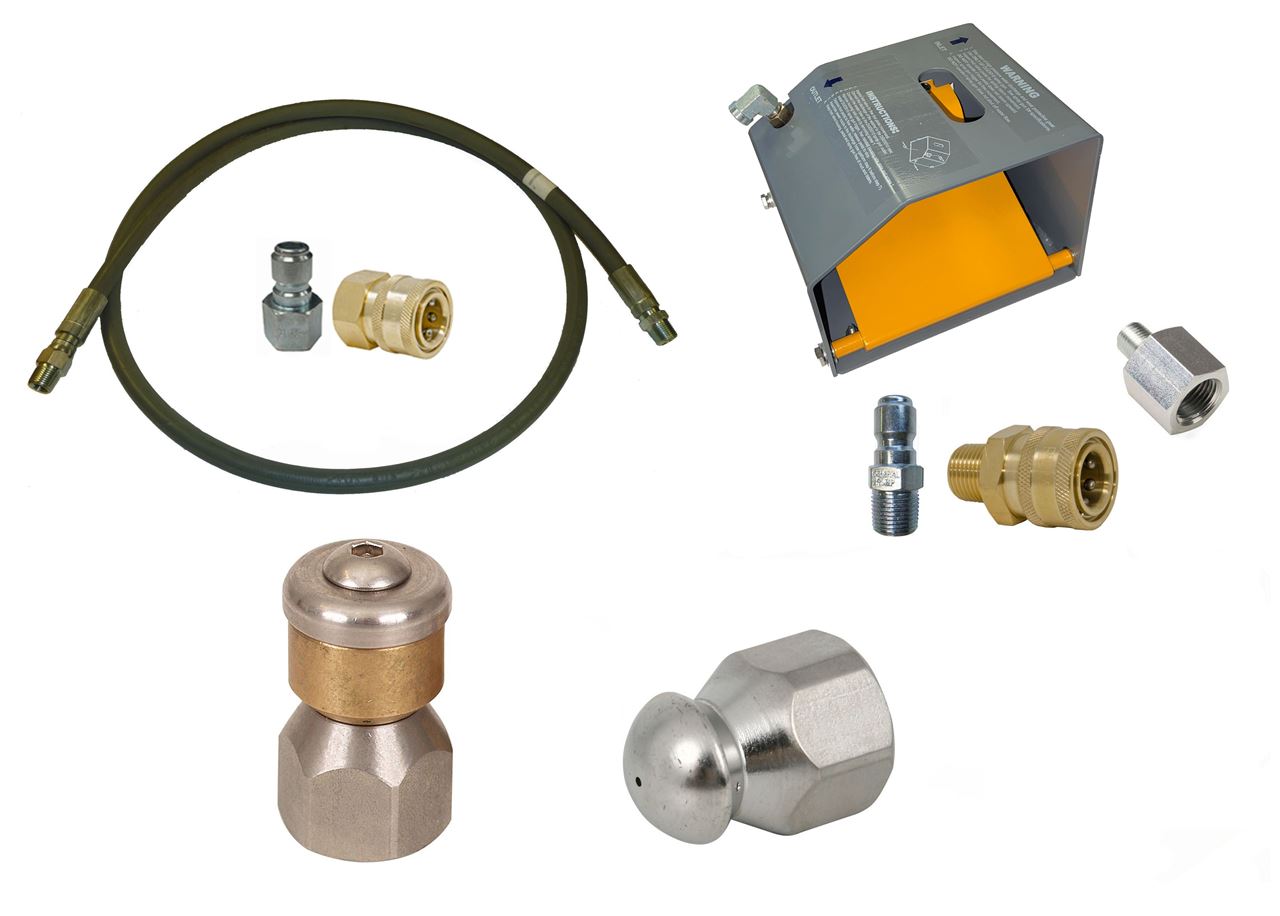

1/8” Suttner ST-49.3 Mini Stainless Steel Rotating Sewer Jetter Nozzle, # 7.0. Limited (or reduced) spinning speed for higher cleaning performance. Two radial jets hit the pipe wall directly with great impact, resulting in excellent cleaning capacity. Two strategically placed retracting jets provide cleaning energy as well as the thrust in one function, resulting in a low water consumption, while maximizing cleaning and flushing away the loosened residues. Housing and Rotor are hardened stainless steel parts with grinded contact surfaces for extended lifetime

Features
• High Quality, German engineered components
• 2 Rotating radial jets (90°) to the pipe wall for best cleaning results
• 2 Rotating rear jets (45°) for forward thrust and flushing away of the waste material
• Physically small for cornering ability
• Rated at 7300 PSI and 248° F

Specifications
• Inlet: 1/8” Female
• Nozzle Size: # 7.0
• 2 Side ports, 2 Backward, 0 Forward
• Material: Stainless steel
• Maximum Pressure: 7,300 PSI
• Max. Fluid Temperature: 248º F
• Outside Diameter (O.D.): 0.47”
• Length: 1.0”
• Weight: .05 lb

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

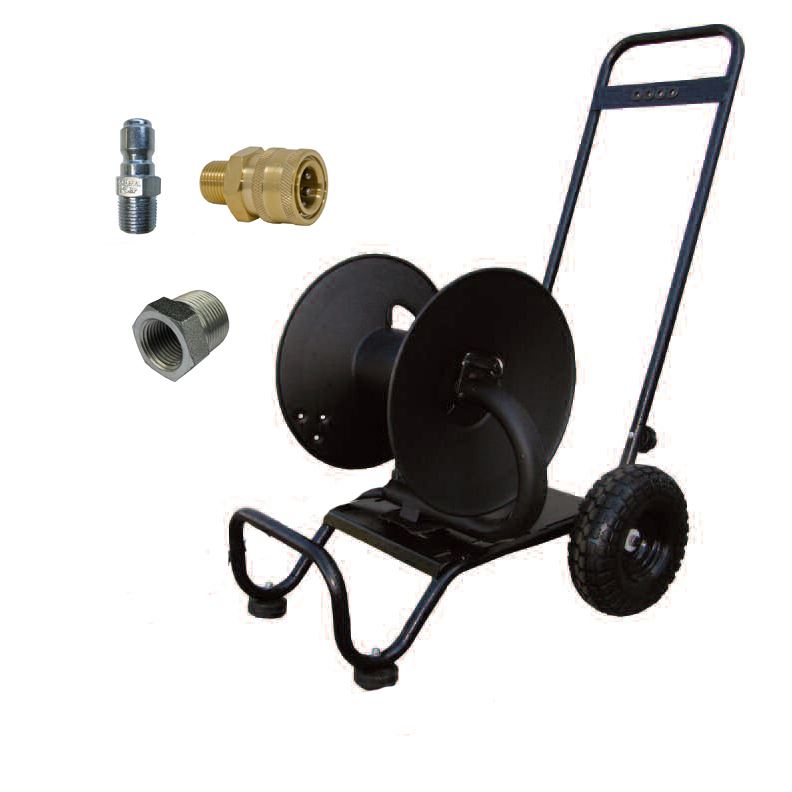

General Pump DHRA50450 3/8" x 450' or 1/2" x 375' or 5/8” x 300’ (garden hose). "A" Frame Industrial Hose Reel. Rated 5,000 PSI and up to 250° F. Ideal for use with pressure washers, sewer jetters, lawn & tree sprayers, etc. Can be used as is or can be mounted to portable cart or stacked

FEATURES
• Direct hand-crank rewind with pin lock
• Solid steel construction
• Durable gray high-gloss powder coated finish
• Full flow stainless steel swivel
• Friction brake
• Switchable swivel/handle
• HD steel welded frame
• HD sealed axle bearings
• Includes one D10032 Fitting 3/4” GH X 1/2 NPT-M

DHRA Spec Sheet

SPECIFICATIONS
• Capacity 3/8" Pressure Washer / Sewer Hose: 450’
• Capacity 5/8" Garden Hose: 325’
• Capacity 3/4" Garden Hose: 250’
• Max. PSI: 5,000
• Max Temp: 250° F.
• Color: Black
• Inlet: 1/2 NPT-F (Bushing Included, 1/2 NPT-M x 3/8 NPT-F)
• Outlet: 1/2 NPT-F (Bushing Included, 1/2 NPT-M x 3/8 NPT-F)
• Carton Dimensions: 26” x 20” x 18”
• Gross Weight 47.6 lbs
