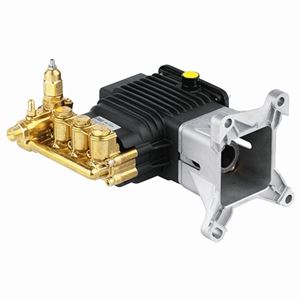

Picture of 4000PSI, 3.5GPM AR Direct Drive Pump with Unloader

4000PSI, 3.5GPM AR Direct Drive Pump with Unloader

SKU: RSV3.5G40D-F40

Brand: Annovi Reverberi - AR North America

Only $235.88

ADD TO CART
QTY:
ADD TO WISHLIST
Customer Product Rating
Product Description


This Annovi Reverberi / AR North America RSV series pumps are designed to direct drive on gasoline engines ranging from 8 – 13 h.p. Intended use for medium to heavy tasks; this triplex plunger pump features the latest in design and technology. Life tested over 500 hours at maximum performance. The RSV is a result of our combined 60 years of pumps building experience and expertise


Features
• Features a compact and efficient intergraded unloader valve and fixed chemical injector
• Thermal relief valve included at no cost
• Forged brass head & valve covers
• Ceramic coated stainless steel plungers
• Direct drive with 4 bolt gas mounting flange


Specifications
• Max. Volume: 3.5 GPM
• Max. Discharge Pressure: 4,000 PSI
• Max. Pump Speed: 3,400 RPM
• Shaft Diameter: 1” Hollow
• Max. Horsepower Requirements: 12.73 GHP
• Max. Fluid Temp.: 140° F.
• Inlet Port: 3/8" FPT
• Outlet Port: 3/8" Male NPT
• Oil capacity: 16 oz
• Weight: 14.0 lb.

Customers who bought this item also bought

Annovi Reverberi Pump Oil (16 oz)

SKU: AR64516

Annovi Reverberi AR64516 16 oz Crankcase Oil is formulated for AR and most other triplex pumps. Also used on AR Blue Clean Models: AR610, AR620, AR630 and AR767


Specifications:
• Special blend, 30W viscosity, non-detergent crank case lubricating oil
• Exceeds wear prevention requirements of all major hydraulic pump mfg's
• Contains anti-wear, rust inhibitor and deoxidizer additives
• Packaged in 16 oz bottles
NOT FOR USE IN CAT PUMPS or AXIAL PUMPS
• Weight: 1.0 Lbs.

Price: $5.30

3/8 MPT Quick Coupler Socket, Brass

SKU: QCS2MB

Brass Quick Connect Socket with Male 3/8" NPT


Features:
• Disconnects with a simple pull to retract socket sleeve
• Ball bearing snap connection
• Precision machined parts
• Click lock design


Specifications:
• Quick connect coupler / socket
• Material: Brass
• Inlet: 3/8" Male NPT
• Outlet: 3/8" Female quick connect
• 4,200 PSI working pressure

Price: $2.53
