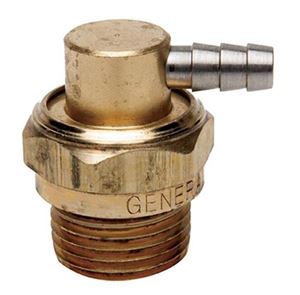

Picture of Thermal Relief Valve 190º F 1/2" MPT

Thermal Relief Valve 190º F 1/2" MPT

SKU: 100680

Brand: General Pump

$11.50

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


General Pump PTP™ Series Pressure Washer Thermal Relief Valve with 1/2" Male Inlet. Protects the pump from damaging heat build-up while it is in bypass mode. The thermal relief valve, sensing a rise in temperature, opens and discharges a small amount of heated fluid. This allows cooler water to enter the system and cool the pump. When the gun is discharged the cooler water will cause the valve to close immediately.


Specifications:
• Compact Design - Shorter overall length
• Trip Temperature: 190º F.
• Brass body
• Inlet thread size: 1/2" MPT
• 1/4” Brass hose barb
• Mounts easily in the pump manifold,inlet water supply or bypass loop plumbing
• Weight: 1.5 oz



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual O.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"



 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
