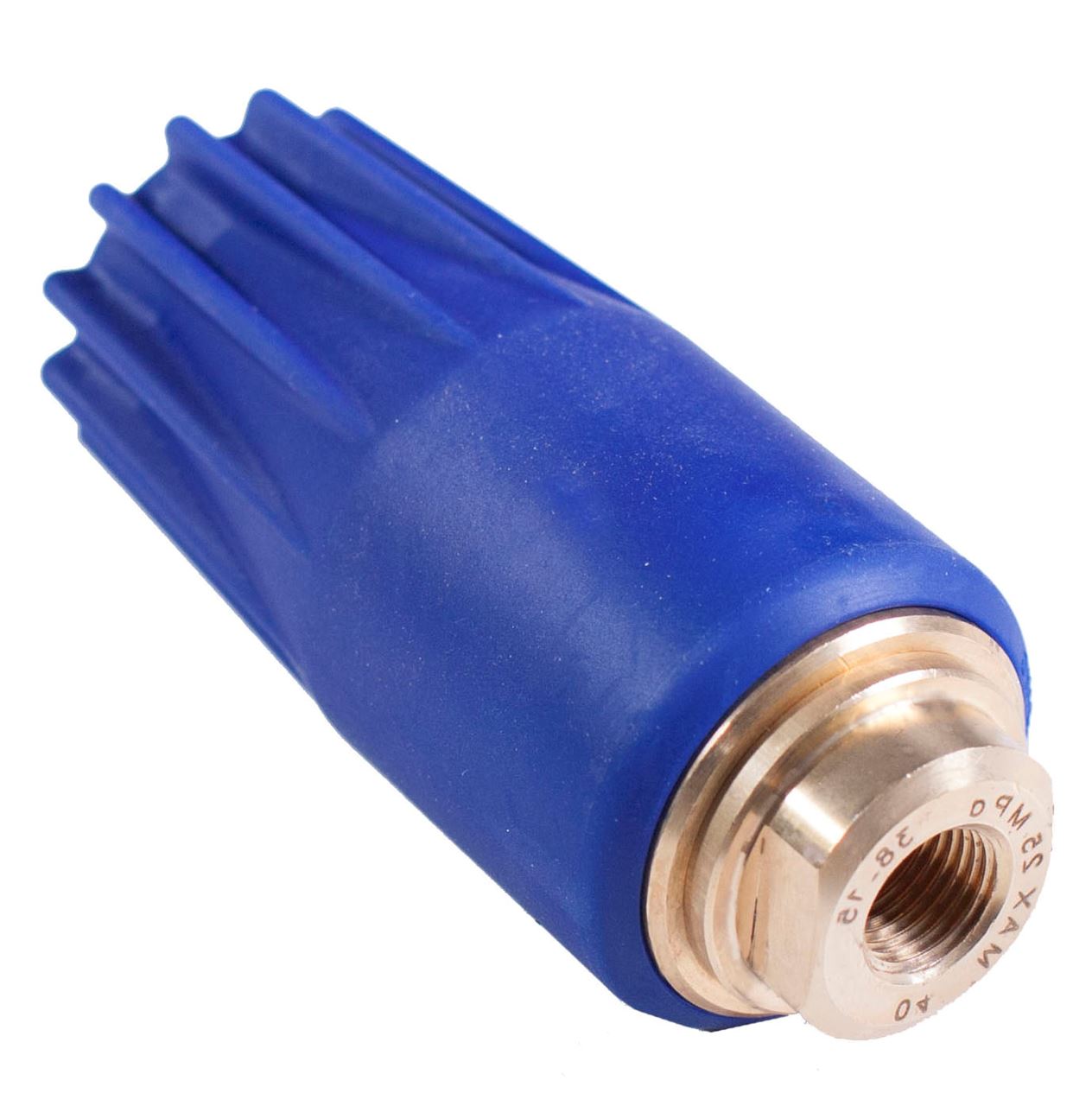

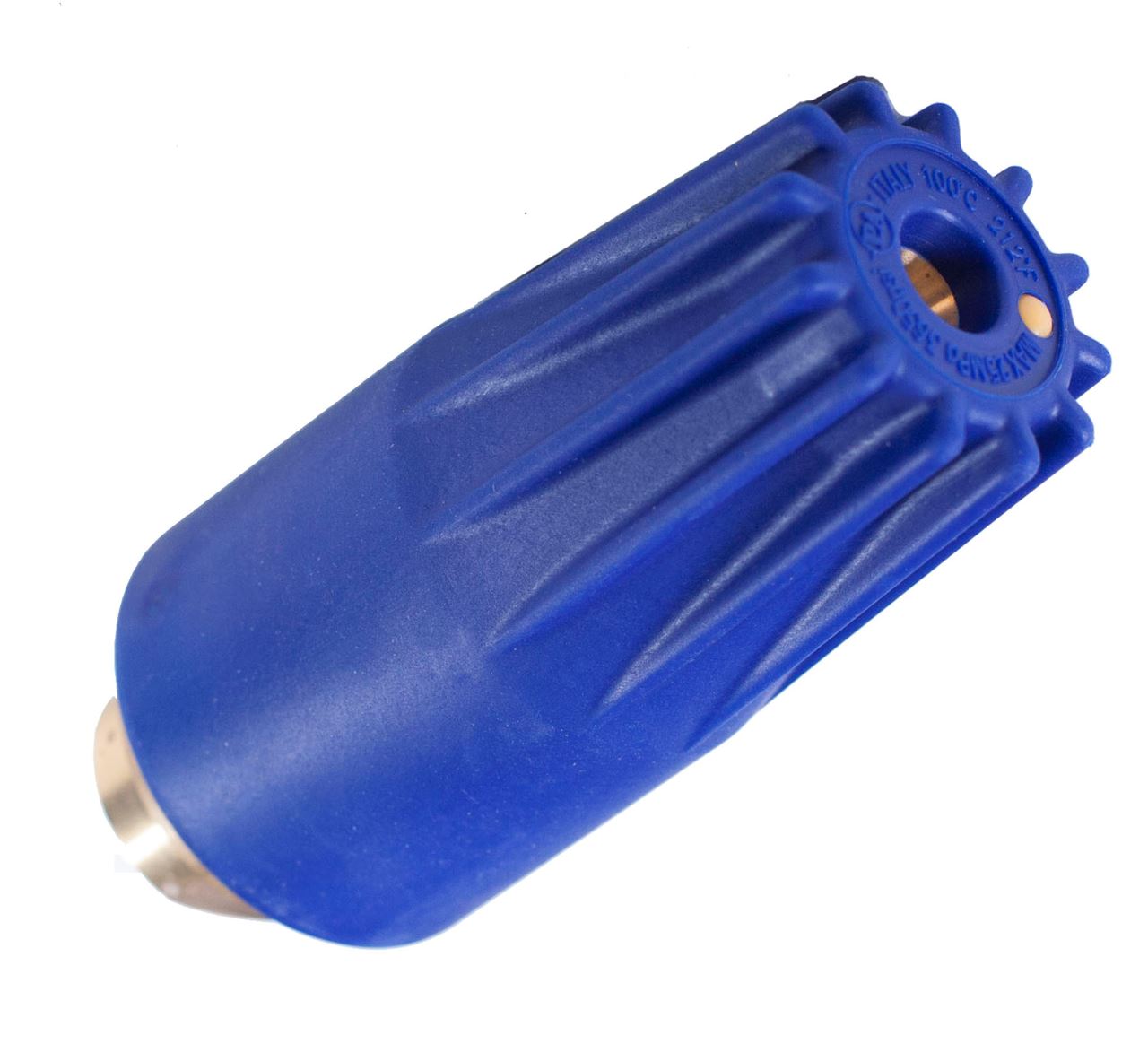

#8.0 Blue UR25 Turbo Nozzle 3,650 PSI is shrouded in a resilient rubber housing protector
Features• Offers 0° Impact, but with a 25° pattern• Unique internal stabilization spring design allows for aim & shoot operation• Nozzle can be pointed in any direction• Shock resistant ceramic• High Strength forged brass housing• Durable rubber cover
Specifications • Nozzle Size #8.0 • Max PSI: 3,650• Max GPM: 7.7• Inlet: 1/4" BSP-F• Minimum for operation: 1.6 GPM at 1,150 PSI • Weight: 0.9 lbs
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Valley Industries Series 40 Dual Scale Industrial 5,000 PSI Back Mount 2-1/2" SS Pressure Gauge. These gauges are designed for use with any medium not corrosive to brass or bronze. Liquid-filled gauges are recommended for reducing shock caused by pressure fluctuations or vibration
Features:• Dial Range (PSI): 0 – 5,000• Dial Range (BAR): 0 – 350• Casing: 2 1/2" Diameter• Movement: Brass• Bourdon Tube: Helical in phosphor bronze • Pointer: Black enameled aluminum• Dial: White aluminum• Window: Polycarbonate – temperature compensating• Case Material: 304 Stainless steel• Mounting: Back• Connection Material: Brass• Connection Size: 1/4" MNPT• Fill Material: Glycerin (liquid)• Wetted Parts: Copper alloy• Weight: 0.50 lbs.
General Pump D10004 Quick Disconnect Coupler Socket Brass 3/8” x 3/8" NPT-M 4,000 PSI
Features: • Quick disconnect design• Brass• EPDM O-Ring
Specifications: • Quick Disconnect Coupler: Socket• Body Material: Brass• Socket Size: 3/8"• Thread: 3/8” NPT-M• Max Temp: 175°• Max Operating Pressure: 4,000 PSI• Replaces QCS2MB• Weight: 0.22 lb
General Pump #2.3mm Fixed Chemical Injector, High Draw, Chemical Draw 20% with 3/8" NPT-M. This 20% fixed flow chemical injector is connected to the downstream side of the pressure pump and is activated when using a low pressure soap nozzle. Choose size based on flow rate of your pressure washer
Features• 20% injection draw rate• Made in the USA• A cost effective solution to your chemical application needs
Injector Specifications:• Size: # 2.3 mm (5.0 to 8.0 GPM)• Max Operating Pressure: 4,500 PSI• Max Temperature: 195° F• Inlet: 3/8” NPT-M• Outlet: 3/8” NPT-M • Chemical Port: 1/4” Hose Barb• Materials: Brass, Stainless Steel, Viton • Note: If between sizes, choose the smaller injector size• Weight: 0.30 lbs
General Pump D11006 Quick Disconnect Coupler Plug Hardened Steel Zinc Plated 1/4” x 1/4" NPT-F 5,000 PSI
Features: • Quick disconnect design• Hardened Steel Zinc Plated
Specifications: • Quick Disconnect Coupler: Plug• Body Material: Hardened Steel• Plug Size: 1/4"• Thread: 1/4” NPT-F• Max Temp: 175°• Max Operating Pressure: 5,000 PSI• Replaces QCP1FS• Weight: 0.06 lb
