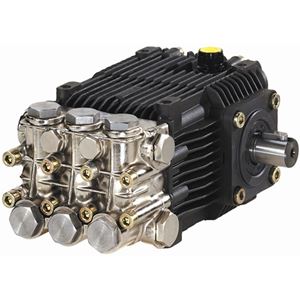

Picture of 3000PSI, 5.5GPM Annovi Reverberi Solid Shaft Pump

3000PSI, 5.5GPM Annovi Reverberi Solid Shaft Pump

SKU: RKA5.5G30HN

Brand: Annovi Reverberi - AR North America

$461.87

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Annovi Reverberi / AR North America RKA N Version Pump with 24mm solid shaft and 1,750 RPM. Used in a wide variety of high pressure washing applications. These pumps are designed for gearbox , belt drive, or coupling drive systems driven by electric motor or gasoline driven systems, gasoline engine driven systems

Features
• They are constructed of die-cast bodies and feature a nickel plated forged brass head
• Internal components include special thick solid ceramic plungers for long life and durability
• Precision cast cooling fins are anodized for maximum heat dissipation
• Oversized tapered roller bearings and the precision supports assure proper shaft alignment and maximum life
• Valve cages of special designed Ultra-Form provide positive seating and extended life
• One-piece connecting rods are oversized for strength and load disbursement

Specifications
• Max. Volume: 5.5 GPM
• Max. Discharge Pressure: 3,000 PSI
• Max. Pump Speed: 1,750 RPM
• Shaft Diameter: 24mm Solid
• Maximum Horsepower Requirements: 11.0 EBHP
• Max. Fluid Temp.: 140º F.
• Inlet Ports (2): 1/2" FPT
• Discharge Ports (2): 3/8" FPT
• Drive Side: Standard right
• Weight: 20.0 lb.

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
