Picture of 5100PSI, 5.5GPM Annovi Reverberi Solid Shaft Pump

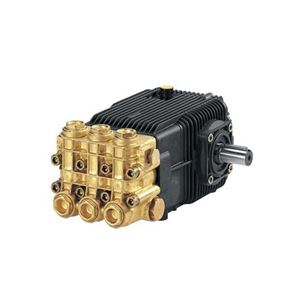

5100PSI, 5.5GPM Annovi Reverberi Solid Shaft Pump

SKU: SXW21.350

Brand: Annovi Reverberi - AR North America

$875.41

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Annovi Reverberi / AR North America SXW Version with 24mm solid shaft series pumps are designed to belt drive or gear drive on gas engines and belt drive or flange coupling on electric motors.


Features:
• Bearings are premium SKF tapered roller bearings that provide extra load support, smoother and lower crankcase running temperatures and overall extended pump life
• Plungers are extra thick solid ceramic titanium impregnated for extended seal and pump life


Specifications:
• Max. Volume: 5.5 GPM
• Max. Discharge Pressure: 5,100 PSI
• Max. Pump Speed: 1,450 RPM
• Shaft Diameter: 24mm Solid
• Max. Horsepower Requirements: 20.0 BHP
• Max. Fluid Temp.: 160 degrees F.
• Inlet Ports (2): 1/2" BSP
• Discharge Ports (2): 3/8" BSP
• Drive Side: Standard right
• Forged brass head & valve covers
• Solid ceramic titanium plungers
• Weight: 35.0 lb.



 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
