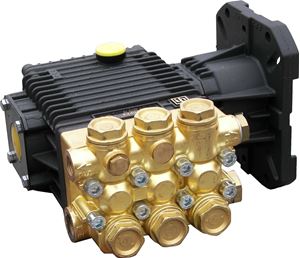

General EZ4040G 4000PSI, 4.0GPM Pump is designed to direct drive on gasoline engines ranging from 9 -13 HP
Features:• Standard SAE J609 gasoline mounting flange for up to 13 hp engines• Forged brass manifold with an exclusive lifetime warranty and 3:1 hydrostatic rating• Die-cast, anodized aluminum oil-bath crankcase• Innovative one-piece plunger design to eliminate water entering crankcase • Premium roller bearing • 5% reduction in crankcase load compared to standard 3,000 PSI, 15 mm pumps • Unitized stainless steel inlet and discharge valves
WARNING: High Pressure Systems require a primary pressure regulating device (i.e. regulator, unloader) and a secondary pressure relief device (i.e. pop-off valve, relief valve). Failure to install such relief devices properly could result in personal injury or damage to pump or property. GP and PRI Industries do not assume any liability or responsibility for the operation of the user’s high pressure system.
Specifications Sheet
Specifications:• Triplex Plunger Pump• Direct Drive with Gas Flange 9.0-13.0 HP SAE• Max. Volume: 4.0 GPM• Max. Discharge Pressure: 4,000 PSI• Max. Pump Speed: 3,400 RPM• Shaft Diameter: 1” Hollow• Max. Horsepower Requirements: 14.54 GHP• Max. Fluid Temp.: 165 degrees F.• Inlet Ports (2): 1/2-14 BSPP-F • Discharge Ports (2): 3/8-19 BSPP-F• Drive Side: Standard right• Note: Item for sale is PUMP ONLY as shown in picture and does not include unloader which is required for proper operation• Weight: 20.0 lb.
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
PA Pulsar 4 Unloader Plumbing Kit for Pressure Washer Pump with EZ Start– 4,050 PSI Max. This unloader kit has all the components to make installation easy
Specifications:• Works with pumps that have 1/2” FPT inlet and 3/8” FPT Outlet• Built-In easy start valve relieves back pressure during engine start up • Maximum Pressure: 4,050 PSI• Max. Volume: 10.5 GPM
COMPONENT:• PA Pulsar 4 Adjustable Unloader Valve 4,050 PSI with EZ Start• 24” of push-on bypass hose• 1/4” Male push on fitting• 3/8” Male push-on fitting• 3/8M x 3/8M Hex Nipple Steel• GP Thermal relief valve protects pump from overheating• GP Duraview water inlet filter with garden hose connection• 3/8” QC socket• 3/8” QC plug• Roll of Teflon tape • Note: Pump in 2nd picture is not included and kit may look different than shown in picture• Unloader Must Be Installed Vertically For Proper Operation• Weight: 5 lb
Accutek® S1022-B Steel Male Hex Nipple 1/4 Male Pipe x 1/4 Male Pipe Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.
Specifications:• Applications - Water, Oil, Air • Working Pressure: 5,000 PSI• Burst Pressure: 20,000 PSI• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Pipe threads must be sealed using approved thread sealant• Weight: 0.06 lbs
Accutek® S1022-C Steel Male Hex Nipple 3/8 Male Pipe x 3/8 Male Pipe Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.
Specifications:• Applications - Water, Oil, Air • Working Pressure: 4,000 PSI• Burst Pressure: 16,000 PSI• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Pipe threads must be sealed using approved thread sealant• Weight: 0.09 lbs
