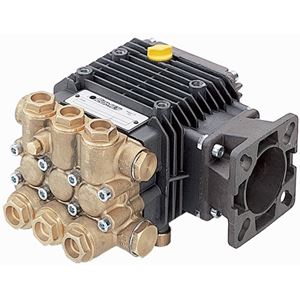

• Triplex Plunger Pump• Direct Drive with Gas Flange 3.0-6.5 HP SAE• Max. Volume: 3.0 GPM• Max. Discharge Pressure: 2,500 PSI• Max. Pump Speed: 3400 RPM• Shaft Diameter: 3/4” Hollow• Max. Horsepower Requirements: 6.5 GHP• Max. Fluid Temp.: 145 degrees F.• Inlet Ports (2): 1/2" FPT• Discharge Ports (2): 3/8" FPT• Drive Side: Reversible crankcase for right or left hand mounting• Forged brass head• Solid ceramic plungers• Replaces Comet # 6303.0701.00• Weight: 13.4 lb.
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
General Pump 25° x #3.5 M-Style Spray Nozzle 1/4” NPT-M
Features• 5,000 PSI operating pressure• Made in the USA• General Pump High Pressure Spray Tips feature a two piece design• Inserts are through hardened and pressed into a 303 stainless steel rust-resistant body for improved durability• The contour control nozzle chamber eliminates the need for flow straighteners • Resistant to most chemical• Laser marked for clarity and durability
Specifications• Tip Angle: 25°• Nozzle Size: 3.5• Operating Pressure: 5,000 PSI• Connection: 1/4” NPT-M• Weight: 0.05 oz
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
Comet Premium Pump Oil (32 oz)
• For diaphragm and high pressure plunger pumps• Specially formulated non-detergent and non-foaming oil• Rated for superior rust and oxidation protection• Packaged in 32 oz bottles• Bottle Color: Black or White• Weight: 2.0 Lbs.
