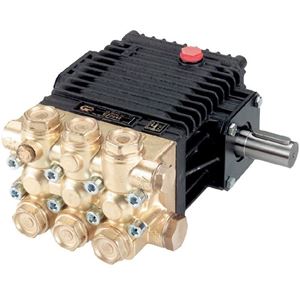

General EZ3042S 3000 PSI, 4.2 GPM Solid Shaft Pump

Features:
• Solid ceramic plunger design
• Forged brass manifold with 4:1 hydrostatic rating
• Die-cast, anodized aluminum, oil-bath crankcase
• Premium roller bearing
• Unitized stainless steel inlet and discharge valves
• Flex coupling and bell housing available for direct drive
• Available in “L” left-handed versions

Specifications Sheet

WARNING: High Pressure Systems require a primary pressure regulating device (i.e. regulator, unloader) and a secondary pressure relief device (i.e. pop-off valve, relief valve). Failure to install such relief devices properly could result in personal injury or damage to pump or property. GP and PRI Industries do not assume any liability or responsibility for the operation of the user’s high pressure system.

Specifications:
• Triplex Plunger Pump
• Max. Volume: 4.2 GPM
• Max. Discharge Pressure: 3,000 PSI
• Max. Pump Speed: 1,750 RPM
• Shaft Diameter: 24 mm Solid
• Max. Horsepower Requirements: 8.6 EBHP
• Maximum Inlet Pressure: 125 PSI
• Oil Capacity: 14 oz.
• Max. Fluid Temp.: 165 degrees F.
• Inlet Ports (2): 1/2-14 BSPP-F
• Discharge Ports (2): 3/8-19 BSPP-F
• Drive Side: Standard right
• Note: Item for sale is PUMP ONLY as shown in picture and does not include unloader which is required for proper operation
• Weight: 18.0 lb.
