PA Pulsar 4 Unloader Plumbing Kit for Pressure Washer Pump with Safety Relief and EZ Start– 4,050 PSI Max. This unloader kit has all the components to make installation easy
Specifications:• Works with pumps that have 1/2” FPT inlet and 3/8” FPT Outlet• Safety relief vale protects equipment and people with adjustable “Pop Off” protection • Built-In easy start valve relieves back pressure during engine start up • Maximum Pressure: 4,050 PSI• Max. Volume: 10.5 GPM

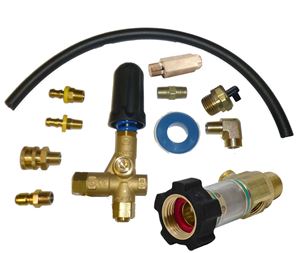

COMPONENT:• PA Pulsar 4 Adjustable Unloader Valve 4,050 PSI with EZ Start• GP Safety pressure relief valve with adjustable range: 1,000 - 6,000 PSI • 3/8” Steel street elbow • 24” of push-on bypass hose• 1/4” Male push on fitting• 3/8” Male push-on fitting• 3/8M x 3/8M Hex Nipple Steel• GP Thermal relief valve protects pump from overheating• GP Duraview water inlet filter with garden hose connection• 3/8” QC socket• 3/8” QC plug• Roll of Teflon tape • Note: Pump in 2nd picture is not included and kit may look different than shown in picture• Unloader Must Be Installed Vertically For Proper Operation• Weight: 5 lb
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
General Pump 0° (Red) #3.5 Quick Connect (Q) Spray Nozzle
Features• 5,000 PSI operating pressure• Ceramic insert is resistant to wear• Through-hardened stainless steel orifices offer superior wear resistance compared to standard case hardened nozzles• Stainless steel housing resists cracking and wear• Resistant to most chemical• Large color coded tip protector on Q-type nozzles permits rapid identification of fan angle• Laser marked for clarity and durability
Specifications• Tip Angle: 0° (Red)• Nozzle Size: 3.5• Operating Pressure: 5,000 PSI• Connection: 1/4” QC Plug• Weight: 0.05 oz
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
Specifications: • Special blend, 30W viscosity, non-detergent crank case lubricating oil• Exceeds wear prevention requirements of all major hydraulic pump mfg's• Contains anti-wear, rust inhibitor and deoxidizer additives• Packaged in 16 oz bottles• NOT FOR USE IN CAT PUMPS or AXIAL PUMPS • Weight: 1.0 Lbs.
Annovi Reverberi / AR North America RKA N Version Pump with 24mm solid shaft and 1,750 RPM. Used in a wide variety of high pressure washing applications. These pumps are designed for gearbox , belt drive, or coupling drive systems driven by electric motor or gasoline driven systems, gasoline engine driven systems
Features • They are constructed of die-cast bodies and feature a nickel plated forged brass head• Internal components include special thick solid ceramic plungers for long life and durability• Precision cast cooling fins are anodized for maximum heat dissipation• Oversized tapered roller bearings and the precision supports assure proper shaft alignment and maximum life• Valve cages of special designed Ultra-Form provide positive seating and extended life• One-piece connecting rods are oversized for strength and load disbursement
Specifications • Max. Volume: 4.0 GPM• Max. Discharge Pressure: 4,000 PSI• Max. Pump Speed: 1,750 RPM• Shaft Diameter: 24mm Solid• Maximum Horsepower Requirements: 14.54 GHP (Industrial Grade)• Max. Fluid Temp.: 140º F.• Inlet Ports (2): 1/2" FPT• Discharge Ports (2): 3/8" FPT• Drive Side: Standard right• Replaces RKA4G30N• Weight: 20.0 lb.
Comet ZWD4040G Industrial Duty Pump. This ZWD 4040G 4,000 PSI & 4.0 GPM pump is designed to direct drive on gasoline 1” Hollow Shaft engines ranging from 9 - 13 HP
Features• Reversible Crankshaft for Easy Right or Left Hand Mounting• Increased Fin Depth Increases Surface Area to Maximize Heat Dissipation• Stainless Steel Unitized Check Valves• Heat-Resistant Solid Ceramic Plungers Operating on Lubricated Packings• Direct Drive Gas Engine Mounting Flange (SAE J609B)• Reinforced Crankcase for Increased Load Capacity• Enlarged Crankcase Increases Oil Capacity for Better Lubrication and Lower Operating Temperatures• One-Piece Industrial-Grade Oversized Bronze Connecting Rods
Specifications• Max. Volume: 4.0 GPM• Max. Discharge Pressure: 4,000 PSI • Max. Pump Speed: 3,400 RPM• Shaft Diameter: 1” Hollow• Max. Horsepower Requirements: 14.5 GHP • Inlet Port: 1/2" FPT• Outlet Port: 3/8" FPT • Oil capacity: 14 oz• Note: Item for sale is PUMP ONLY as shown in picture and does not include unloader which is required for proper operation• Weight: 17.5 lb.
