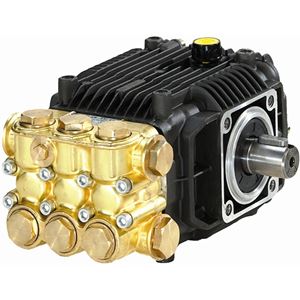

Picture of 2500PSI, 2.9GPM Annovi Reverberi Solid Shaft Pump, 185º Hot Water

2500PSI, 2.9GPM Annovi Reverberi Solid Shaft Pump, 185º Hot Water

SKU: XHW11.17N

Brand: Annovi Reverberi - AR North America

Only $697.50

ADD TO CART
QTY:
ADD TO WISHLIST
Customer Product Rating
Product Description


Annovi Reverberi 185º Hot Water Triplex Plunger Pump. Designed for a wide variety of high pressure washing applications. These pumps are designed for gearbox , belt drive, or coupling drive systems driven by electric motor or gasoline driven systems, gasoline engine driven systems


Features:
Manifold: Nickel plated forged brass.
Plungers: Special thick solid ceramic for long life, strong durability and more resilience.
Bearings: Oversized for maximum life and load disbursement, needle bearing on the drive side and ball on the non-drive side.
Crankcase: Precision die-cast, large cooling fins and anodized for maximum heat dissipation.
Valve, Seat and Springs: Stainless steel with specially designed ultra form material.
Seals and V-Packing: 185º Viton high temperature machined.
Plunger Rods: High strength stainless steel construction.
Connecting Rods: One-piece bronze special alloy aluminum based, oversized for maximum strength, load disbursement, and life. Heavy pin area construction, for added load strength.

Specifications:
• Max. Volume: 2.9 GPM
• Max. Discharge Pressure: 2,500 PSI
• Max. Pump Speed: 1,450 RPM
• Shaft Diameter: 24mm Solid
• Maximum Horsepower Requirements: 5.0 BHP
• Max. Fluid Temp.: 185º F.
• Inlet Ports (2): 1/2" FPT
• Discharge Ports (2): 3/8" FPT
• Drive Side: Standard right
• Weight: 14.0 lb.
