General Pump 3/8" 5,000 PSI Stainless Steel Quick Disconnect Fittings (1 Plug & 1 Socket)

Features:
• Quick disconnect design
• Body Material: 304 Stainless steel
• 1 pc: General Pump 3/8 NPT-F Quick disconnect coupler socket with EPDM O-ring
• 1 pc: General Pump 3/8 NPT-F Quick disconnect coupler plug
• Max Temp: 175°
• Max Operating Pressure: 5,000 PSI
• Works with standard quick connects
• Weight: 0.30 lb

Spraying Systems 25º Brass H-U 1/4" (M) VeeJet® Spray Nozzle. As the liquid exits through the sharp V shape cut of the orifice, it forms into a flat spray pattern. The distribution is tapered from the center of the spray

Features
• Flat fan type, tapered edge spray pattern
• Consistent performance over the industry's largest range of flow rates and pressures
• One-piece design
• Uniform spray distribution with flow rates from .012 to 1237 gpm
• Operating pressures up to 500 psi

TECHNICAL DATA SHEET

Specifications
• Spray Angle: 25º
• Capacity Size: 15
• Operating Pressure: Up to 500 PSI
• Material: Brass
• Inlet Connection: 1/4" Male thread
• Length: 1.0”
• Hex: 9/16”
• Net Weight: 0.8 Oz

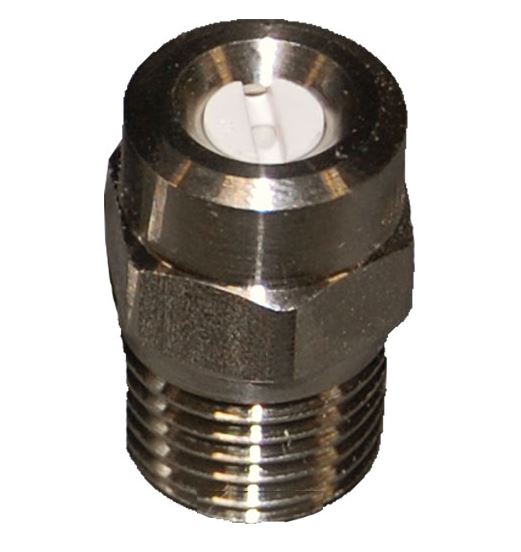

Mecline 25° High Pressure Threaded Spray Nozzle with Ceramic Orifice and 1/4” Male NPT

Features

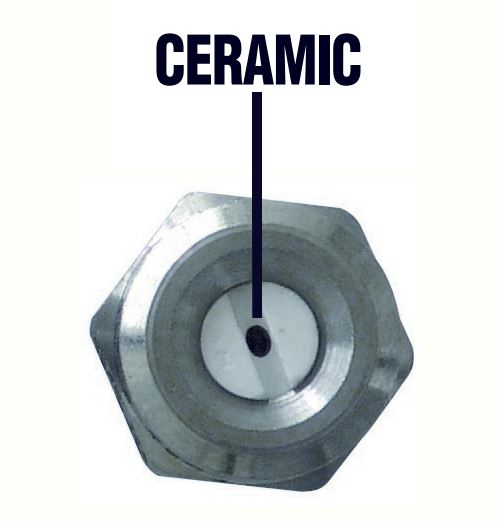

• Ceramic inserts provide up to 10 times the wear life of stainless steel inserts
• Ceramic insert is resistant to wear
• The ceramic insert guarantees a more precise and stronger stream
• Stainless Steel AISI303 body

Specifications
• Flat fan jet angle: 25°
• Nozzle Size: 3.0
• Rated Pressure: 4,500 PSI
• Permissible Pressure: 5,075 PSI
• Rated Temperature: 300° F
• Inlet: 1/4” Male NPT
• Weight: 0.63 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

Mecline 40° High Pressure Threaded Spray Nozzle with Ceramic Orifice and 1/4” Male NPT

Features
• Ceramic inserts provide up to 10 times the wear life of stainless steel inserts
• Ceramic insert is resistant to wear
• The ceramic insert guarantees a more precise and stronger stream
• Stainless Steel AISI303 body

Specifications
• Flat fan jet angle: 40°
• Nozzle Size: 3.0
• Rated Pressure: 4,500 PSI
• Permissible Pressure: 5,075 PSI
• Rated Temperature: 300° F
• Inlet: 1/4” Male NPT
• Weight: 0.63 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

>
