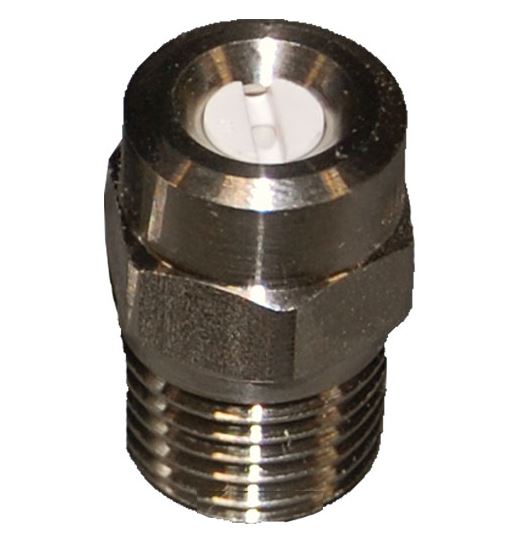

Mecline 25° High Pressure Threaded Spray Nozzle with Ceramic Orifice and 1/4” Male NPT

Features

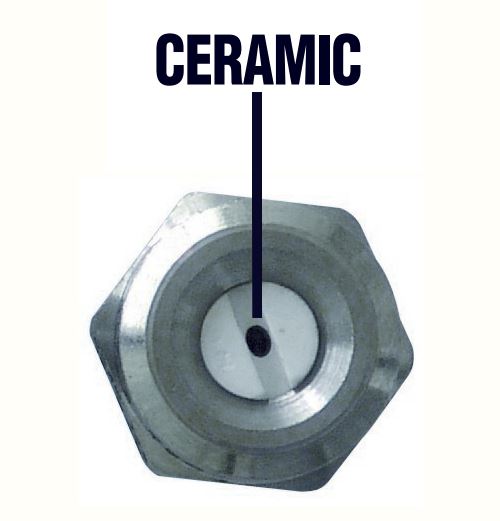

• Ceramic inserts provide up to 10 times the wear life of stainless steel inserts
• Ceramic insert is resistant to wear
• The ceramic insert guarantees a more precise and stronger stream
• Stainless Steel AISI303 body

Specifications

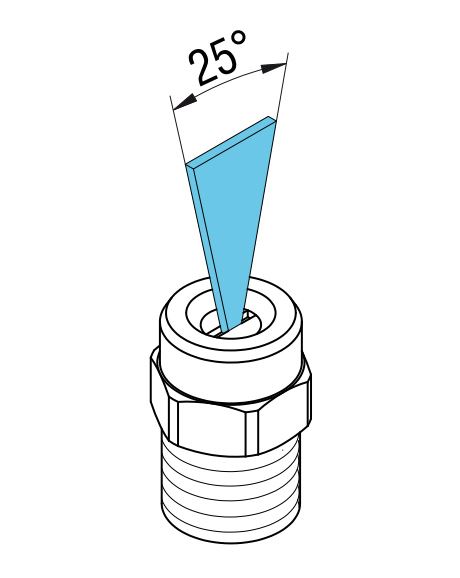

• Flat fan jet angle: 25°
• Nozzle Size: 10.0
• Rated Pressure: 4,500 PSI
• Permissible Pressure: 5,075 PSI
• Rated Temperature: 300° F
• Inlet: 1/4” Male NPT
• Weight: 0.63 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

Mecline 25° High Pressure Threaded Spray Nozzle with Ceramic Orifice and 1/4” Male NPT

Features
• Ceramic inserts provide up to 10 times the wear life of stainless steel inserts
• Ceramic insert is resistant to wear
• The ceramic insert guarantees a more precise and stronger stream
• Stainless Steel AISI303 body

Specifications
• Flat fan jet angle: 25°
• Nozzle Size: 15.0
• Rated Pressure: 4,500 PSI
• Permissible Pressure: 5,075 PSI
• Rated Temperature: 300° F
• Inlet: 1/4” Male NPT
• Weight: 0.63 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

General Pump D10064 Quick Disconnect Coupler Easy-Grip Socket Nickel Plated Brass 3/8” x 3/8" NPT-M 4,000 PSI

Features:
• Offers protection when the coupler is hot and a steady grip that won't slip easily
• Quick disconnect design
• Nickel plated brass for durability
• EPDM O-Ring

Specifications:
• Quick Disconnect Coupler: Socket
• Body Material: Brass
• Socket Size: 3/8"
• Thread: 3/8” NPT-M
• Max Temp: 175°
• Max Operating Pressure: 4,000 PSI
• Weight: 0.25 lb

General Pump D10079 Quick Disconnect Coupler Plug Stainless Steel 3/8” x 3/8" NPT-M 6,000 PSI

Features:
• Quick disconnect design
• 304 Stainless steel

Specifications:
• Quick Disconnect Coupler: Plug
• Body Material: 304 Stainless steel
• Plug Size: 3/8"
• Thread: 3/8” NPT-M
• Max Temp: 175°
• Max Operating Pressure: 6,000 PSI
• Replaces QCP2MSS
• Weight: 0.11 lb
