Picture of #4.0 x 40º 1/4" MPT High Pressure Ceramic Spray Nozzle

#4.0 x 40º 1/4" MPT High Pressure Ceramic Spray Nozzle

SKU: NZC4004

Brand: Mecline

Only $10.95

ADD TO CART
QTY:
ADD TO WISHLIST
Customer Product Rating
Product Description

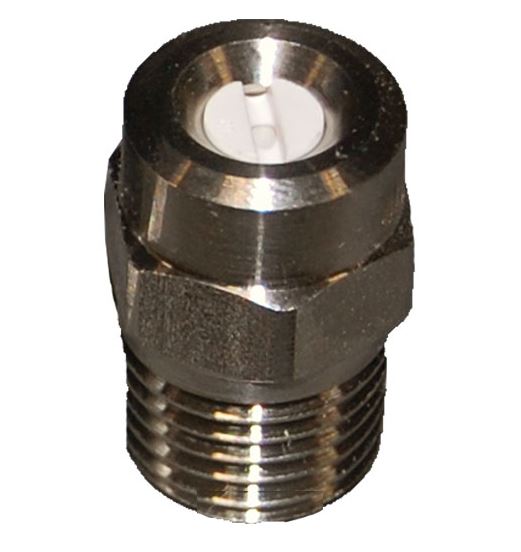

Mecline 40° High Pressure Threaded Spray Nozzle with Ceramic Orifice and 1/4” Male NPT


Features

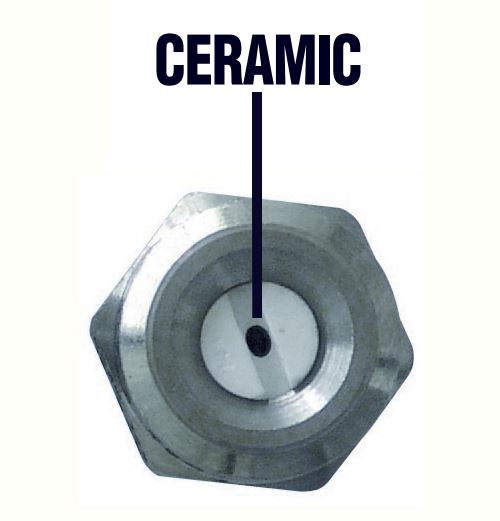

• Ceramic inserts provide up to 10 times the wear life of stainless steel inserts
• Ceramic insert is resistant to wear
• The ceramic insert guarantees a more precise and stronger stream
• Stainless Steel AISI303 body


Specifications

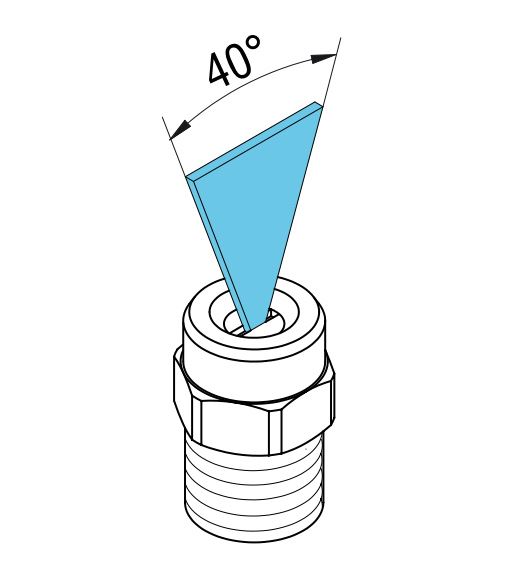

• Flat fan jet angle: 40°
• Nozzle Size: 4.0
• Rated Pressure: 4,500 PSI
• Permissible Pressure: 5,075 PSI
• Rated Temperature: 300° F
• Inlet: 1/4” Male NPT
• Weight: 0.63 oz


Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart



>

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
