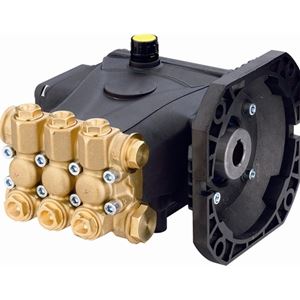

Picture of 2500PSI, 3.0GPM Annovi Reverberi Direct Drive Pump

2500PSI, 3.0GPM Annovi Reverberi Direct Drive Pump

SKU: RCA3G25E-F8

Brand: Annovi Reverberi - AR North America

$295.38

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Annovi Reverberi / AR North America RCA E Version with F8 flange series pumps are designed to direct drive on electric NEMA 56 C motors ranging from 1.5 – 6.0 HP. Intended use for heavy tasks; this triplex plunger pump features the latest in design and technology. Life tested over 2,000 hours at maximum performance. The RCA is a result of our combined 60 years of pumps building experience and expertise


Features
• Latest in design and technology
• New crankcase style
• High strength forged brass manifold for long term use
• NEW ceramic plungers, thicker wall to help prevent thermal shock
• Stainless steel valves
• Side mount valve seat o-rings
• High quality high pressure seals
• NEW low pressure seal with built in scraper
• Two piece piston guides
• NEW connecting rod with 12% more load surface
• Large side cover sight glass
• Oversized bearings
• Rear cover oil drain
• Forged, precision ground crankshaft


Specifications
• Max. Volume: 3.0 GPM
• Max. Discharge Pressure: 2,500 PSI
• Max. Pump Speed: 1,750 RPM
• Shaft Diameter: 5/8” Hollow
• Max. Horsepower Requirements: 5.1 EBHP
• Max. Fluid Temp.: 140° F.
• Inlet Ports (2): 1/2" Female
• Outlet Ports (2): 3/8" Female
• Oil capacity: 9.81 oz
• Weight: 11.0 lb.

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.

Customers who bought this item also bought
Picture of GP #3.0 Quick Connect (Q) Spray Nozzle 5-Pack

GP #3.0 Quick Connect (Q) Spray Nozzle 5-Pack

SKU: 105082


General Pump #3.0 Quick Connect (Q) Spray Nozzle 5-Pack


Features
• 5,000 PSI operating pressure
• Made in the USA
• Ceramic insert is resistant to wear
• Through-hardened stainless steel orifices offer superior wear resistance compared to standard case hardened nozzles
• Stainless steel housing resists cracking and wear
• Resistant to most chemical
• Large color coded tip protector on Q-type nozzles permits rapid identification of fan angle
• Laser marked for clarity and durability


Specifications
• Nozzle Size: 3.0
• Contents: One each of a 0º, 15º, 25º, 40º and 65º #40 soap nozzle
• Operating Pressure: 5,000 PSI
• Connection: 1/4” QC Plug
• Weight: 0.50 oz


Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

  Price: $18.40
Picture of Duraview Inlet Water Filter 1/2" MPT X 3/4 FGH, 1/4" Bypass

Duraview Inlet Water Filter 1/2" MPT X 3/4 FGH, 1/4" Bypass

SKU: 100651


General Pump New & Improved DuraView Inlet Water Filter 1/2" MPT X 3/4 FGH with 1/4" Bypass Ports. For general purpose pressure wash use


Features
• NEW FEATURE: over-molded easy grip nut!
• Strongest see-through filter on the market
• Loadbearing brass spine
• Integrated garden hose connector
• Flow through design
• Clear plastic cover


Specifications
• Maximum Temperature: 180° F
• Max Volume: 8.0 GPM
• Maximum Operating Pressure: 150 PSI
• Minimum Operating Pressure: 15 PSI
• Materials: Brass, Stainless Steel, Buna-N
• Inlet: Female garden hose (FGH)
• Outlet: 1/2” NPT-M
• Bypass Ports: 1/4” NPT-F Bypass Port
• Dimensions: 1.125” x 3.75”
• Weight: 1.50 Lbs

  Price: $16.33
Picture of VR54 Adjustable Unloader 2,900 PSI (Red Knob)

VR54 Adjustable Unloader 2,900 PSI (Red Knob)

SKU: VR54-200

Newly introduced Mecline VR54 Adjustable Pressure Unloader


Specifications:
• Maximum Pressure: 2,900 PSI
• Max. Volume: 8.0 GPM
• Knob Color: Red
• Adjustable pressure
• Brass valve body
• Max. Fluid Temp.: 194° F.
• Inlet Port: 3/8" MNPT
• Discharge Port: 3/8” MNPT
• Bypass Port: 3/8” FNPT
• Replaces MV540K Unloader
• Weight: 13.7 oz

  Price: $39.41
Picture of #3.0 PA UR25 Blue Rotating Nozzle 3,650 PSI

#3.0 PA UR25 Blue Rotating Nozzle 3,650 PSI

SKU: 25.1620.30


#3.0 Blue UR25 Turbo Nozzle 3,650 PSI is shrouded in a resilient rubber housing protector


Features
• Offers 0° Impact, but with a 25° pattern
• Unique internal stabilization spring design allows for aim & shoot operation
• Nozzle can be pointed in any direction
• Shock resistant ceramic
• High Strength forged brass housing
• Durable rubber cover


Specifications
• Nozzle Size #3.0
• Max PSI: 3,650
• Max GPM: 7.7
• Max Temp.: 212° F
• Inlet: 1/4" BSP-F
• Minimum for operation: 1.6 GPM at 1,150 PSI
• Weight: 0.9 lbs


Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart



  Price: $44.80
