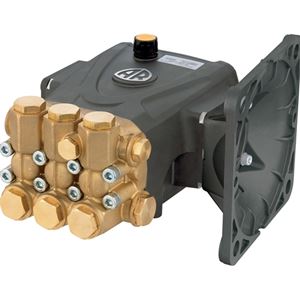

Picture of 2600PSI, 5.5GPM Annovi Reverberi Direct Drive Pump

2600PSI, 5.5GPM Annovi Reverberi Direct Drive Pump

SKU: RRA5.5G26E-F17

Brand: Annovi Reverberi - AR North America

Only $310.00

ADD TO CART
QTY:
ADD TO WISHLIST
Customer Product Rating
Product Description


Annovi Reverberi / AR North America RRA E Version with F17 flange series pumps are designed to direct drive on electric NEMA 182 - 184 frame motors ranging from 6.2 – 11.3 EBHP. Intended use for heavy tasks; this triplex plunger pump features the latest in design and technology. Life tested over 2,000 hours at maximum performance. The RRA is a result of our combined 60 years of pumps building experience and expertise


Features:
• Latest in design and technology
• New crankcase style
• High strength forged brass manifold for long term use
• NEW ceramic plungers, thicker wall to help prevent thermal shock
• Stainless steel valves
• Side mount valve seat o-rings
• High quality high pressure seals
• NEW low pressure seal with built in scraper
• Two piece piston guides
• NEW connecting rod with 12% more load surface
• Large side cover sight glass
• Oversized bearings
• Rear cover oil drain
• Forged, precision ground crankshaft


Specifications:
• Max. Volume: 5.5 GPM
• Max. Discharge Pressure: 2,600 PSI
• Max. Pump Speed: 1,750 RPM
• Shaft Diameter: 1-1/8” Hollow
• Max. Horsepower Requirements: 11.3 EBHP
• Max. Fluid Temp.: 140° F.
• Inlet Ports (2): 1/2" Female
• Outlet Ports (2): 3/8" Female
• Oil capacity: 13.35 oz
• Weight: 18.0 lb.

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
