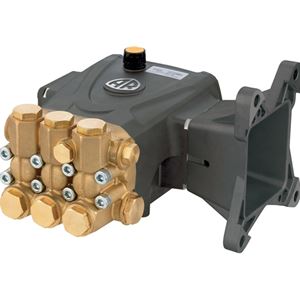

Picture of 3600PSI, 3.0GPM Annovi Reverberi Direct Drive Pump

3600PSI, 3.0GPM Annovi Reverberi Direct Drive Pump

SKU: RRV3G36D-F24

Brand: Annovi Reverberi - AR North America

Only $275.00

ADD TO CART
QTY:
ADD TO WISHLIST
Customer Product Rating
Product Description


Annovi Reverberi / AR North America RRV D Version with F24 flange series pumps are designed to direct drive on gasoline engines ranging from 8 – 13.0 h.p. Intended use for heavy tasks; this triplex plunger pump features the latest in design and technology. Life tested over 2,000 hours at maximum performance. The RRV is a result of our combined 60 years of pumps building experience and expertise


Features:
• Latest in design and technology
• New crankcase style
• High strength forged brass manifold for long term use
• NEW ceramic plungers, thicker wall to help prevent thermal shock
• Stainless steel valves
• Side mount valve seat o-rings
• High quality high pressure seals
• NEW low pressure seal with built in scraper
• Two piece piston guides
• NEW connecting rod with 12% more load surface
• Large side cover sight glass
• Oversized bearings
• Rear cover oil drain
• Forged, precision ground crankshaft


Specifications:
• Max. Volume: 3.0 GPM
• Max. Discharge Pressure: 3,600 PSI
• Max. Pump Speed: 3,400 RPM
• Shaft Diameter: 1” Hollow
• Max. Horsepower Requirements: 9.82 GHP
• Max. Fluid Temp.: 140° F.
• Inlet Ports (2): 1/2" Female
• Outlet Ports (2): 3/8" Female
• Oil capacity: 13.35 oz
• Weight: 18.0 lb.
