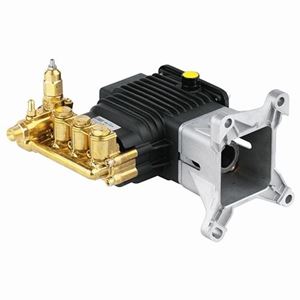

This Annovi Reverberi / AR North America RSV series pumps are designed to direct drive on gasoline engines ranging from 8 – 13 h.p. Intended use for medium to heavy tasks; this triplex plunger pump features the latest in design and technology. Life tested over 500 hours at maximum performance. The RSV is a result of our combined 60 years of pumps building experience and expertise

Features
• Features a compact and efficient intergraded unloader valve and fixed chemical injector
• Thermal relief valve included at no cost
• Forged brass head & valve covers
• Ceramic coated stainless steel plungers
• Direct drive with 4 bolt gas mounting flange

Specifications
• Max. Volume: 3.0 GPM
• Max. Discharge Pressure: 3,400 PSI
• Max. Pump Speed: 3,400 RPM
• Shaft Diameter: 1” Hollow
• Max. Horsepower Requirements: 9.3 GHP
• Max. Fluid Temp.: 140° F.
• Inlet Port: 3/8" FPT
• Outlet Port: 3/8" Male NPT
• Oil capacity: 16 oz
• Weight: 14.0 lb.
